Aeotec
Home Energy Meter Gen5
ZW095-C
Sub Energy Meter
5F
ZM5202
6.51.06
0x0086 (134)
0x0002 (2)
0x005F (95)
ZC10-15120010
2015-12-10 08:09:09.2772
N/A
Enhanced 232 Slave
Always On Slave

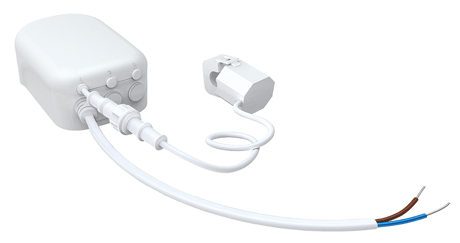

Aeon Labs Home Energy Meter Gen5 is a smart energy meter, which can monitor the total amount of electricity of your home.
Aeon Labs Home Energy Meter Gen5 is a Z-Wave device that can monitor the total amount of electricity of your home. It can report the wattage energy usage and KWH usage to a Z-Wave Controller (especially a gateway). In near real-time you’ll have a full understanding of how much electricity you use and when you use it. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. Also a tool that can be programmed, scheduled, controlled and communicated with from anywhere in the world.
2 - Set the energy detection mode for parameter 101 to 103.
Set the energy detection mode for the measure reports of parameter 101 to 103.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Report absolute value for power and energy measurements. |
| 1 | 1 | Report positive/negative power and report the algebraic sum energy |
| 2 | 2 | Report positive/negative power and only report energy positive part (consuming electricity) |
| 3 | 3 | Report positive/negative power and only report energy negative part (generating electricity). |
3 - Enable/disable selective reporting only when power change reaches a certain threshold or percentage
Enable/disable selective reporting only when power change reaches a certain threshold or percentage set in parameter 4 to 11.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable. |
4 - Threshold change in wattage to induce a automatic report
Threshold change in wattage to induce a automatic report for total power report.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60000 | The available range is 0 to 60000. |
5 - Threshold change in wattage to induce a automatic report
Threshold change in wattage to induce a automatic report for the power report of Clamp 1.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60000 | The available range is 0 to 60000. |
6 - Threshold change in wattage to induce a automatic report
Threshold change in wattage to induce a automatic report for the power report of Clamp 2.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60000 | The available range is 0 to 60000. |
8 - Percentage change in wattage to induce a automatic report
Percentage change in wattage to induce a automatic report for total power report.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | The available range is 0 to 100. |
9 - Percentage change in wattage to induce a automatic report
Percentage change in wattage to induce a automatic report for the power report of Clamp 1.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | The available range is 0 to 100. |
10 - Percentage change in wattage to induce a automatic report
Percentage change in wattage to induce a automatic report for the power report of Clamp 2.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | The available range is 0 to 100. |
101 - To set which report need to be sent.
To set which report need to be sent in Report group 1.Size: 4 bytes
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Report Accumulated kWh of whole HEM |
| 2 | 2 | Report Instantaneous Watts of whole HEM. |
| 4 | 4 | Report Instantaneous Voltage of whole HEM. |
| 8 | 8 | Report Instantaneous Current (Amperes) of whole HEM. |
| 256 | 256 | Report Instantaneous Watts of Channel 1. |
| 768 | 768 | Report Instantaneous Watts of Channel 2. |
| 2048 | 2048 | Report Accumulated kWh of Channel 1. |
| 4096 | 4096 | Report Accumulated kWh of Channel 2. |
| 65535 | 65535 | Report Instantaneous Voltage of Channel 1. |
| 196608 | 196608 | Report Instantaneous Voltage of Channel 2. |
| 524288 | 524288 | Report Instantaneous Current (Amperes) of Channel 1. |
| 1048576 | 1048576 | Report Instantaneous Current (Amperes) of Channel 2. |
102 - To set which report need to be sent.
To set which report need to be sent in Report group 2.Size: 4 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Report Accumulated kWh of whole HEM |
| 2 | 2 | Report Instantaneous Watts of whole HEM. |
| 4 | 4 | Report Instantaneous Voltage of whole HEM. |
| 8 | 8 | Report Instantaneous Current (Amperes) of whole HEM. |
| 256 | 256 | Report Instantaneous Watts of Channel 1. |
| 768 | 768 | Report Instantaneous Watts of Channel 2. |
| 2048 | 2048 | Report Accumulated kWh of Channel 1. |
| 4096 | 4096 | Report Accumulated kWh of Channel 2. |
| 65535 | 65535 | Report Instantaneous Voltage of Channel 1. |
| 196608 | 196608 | Report Instantaneous Voltage of Channel 2. |
| 524288 | 524288 | Report Instantaneous Current (Amperes) of Channel 1. |
| 1048576 | 1048576 | Report Instantaneous Current (Amperes) of Channel 2. |
103 - To set which report need to be sent.
To set which report need to be sent in Report group 3.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Report Accumulated kWh of whole HEM |
| 2 | 2 | Report Instantaneous Watts of whole HEM. |
| 4 | 4 | Report Instantaneous Voltage of whole HEM. |
| 8 | 8 | Report Instantaneous Current (Amperes) of whole HEM. |
| 256 | 256 | Report Instantaneous Watts of Channel 1. |
| 768 | 768 | Report Instantaneous Watts of Channel 2. |
| 2048 | 2048 | Report Accumulated kWh of Channel 1. |
| 4096 | 4096 | Report Accumulated kWh of Channel 2. |
| 65535 | 65535 | Report Instantaneous Voltage of Channel 1. |
| 196608 | 196608 | Report Instantaneous Voltage of Channel 2. |
| 524288 | 524288 | Report Instantaneous Current (Amperes) of Channel 1. |
| 1048576 | 1048576 | Report Instantaneous Current (Amperes) of Channel 2. |
111 - Set the interval time of sending report.
Set the interval time of sending report in Report group 1.Size: 4 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 268435456 | Interval Seconds |
112 - Set the interval time of sending report.
Set the interval time of sending report in Report group 2.Size: 4 bytes
Default: 120
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 268435456 | Interval Seconds |
113 - Set the interval time of sending report.
Set the interval time of sending report in Report group 3.Size: 4 bytes
Default: 120
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 268435456 | Interval Seconds |
200 - Partner ID
Partner ID.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Aeon Labs Standard Product |
| 1 | 127 | Partner ID of Partner Product |
252 - Enable/Disable Lock Configuration
Enable/Disable Lock Configuration.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | All configuration parameters are configurable. |
| 1 | 1 | All configuration parameters are not configurable (Locked) |
255 - Reset to default factory setting
Reset to default factory setting.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Resets all configuration parameters to default setting. |
| 1431655765 | 1431655765 | Reset the product to default factory setting and be excluded from the Z-wave network |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Press and hold the Action button that you can find on the product's housing for 10 seconds and then release. This procedure should only be used when the primary controller is inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
