Dawon DNS
Power Manager
PM-B400ZW
On/Off Power Switch
11
WML-C85
6.51.06
0x018C (396)
0x0042 (66)
0x0005 (5)
ZC10-16010011
2016-01-18 08:28:02.5188
N/A
Enhanced 232 Slave
Always On Slave
This device measures the total amout of accumulated electricity and the amount currently amount of electricity and has the ability to power on or off the connected load.(ex. electric home appliances)
The apparatus can remotely power on/off to the load connected and will inform you of the electricity usage of your load. You can use it to measure the power of the load connected to the device (currently instantaneous power & accumulated power).

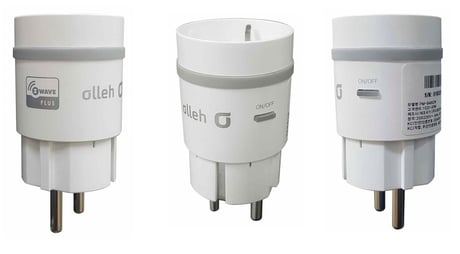

Product Picture
1 - Standy Power Setting Value
3 Byte, Standby Power Enable/Disble : 1 Byte) Value : if the value is set by 300, standby power equals 3.00w (0x00012C) and standby power enable is 1. total 0x00012C01 ( Default : 0 – 0.00W, StandbyPower Disable)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 |
2 - Peridic Measurement Value Transmission
Value : 1 Periodic Measurement Value Transmission Enable Value : 0 Periodic Measurement Value Transmission disable ( Default : Periodic Measurement Value Transmission Enable )Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 |
3 - Accumulation Start/Stop
Value : 0 Accumulation Stop Value : 1 Accumulation Start ( Default : Accumulation Start ) (This configuration value is used only 0 and 1.)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 |
4 - Connected Device Use/Not Use
Value : 0 Connected Device Not Use Value : 1 Connected Device Use - Before setting the standby power it does not report. (This configuration value is used only 0 and 1.)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 |
5 - Periodic Time Intervals
Minimum time interval : 10minutes Value : 1 (10minutes * 1) = 10minutes interval Value : 2 (10minutes * 2) = 20minutes interval …….. …….. Value : 144(10m * 144) = 24 hours interval =>MAX ( Default : 6 = One hour )Size: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 144 |
After mounting the UZB controller to your PC and running the PC Controller program, click the Add button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet and it will include to the network controller, while flashing the red button on the LED Smart Plug.
After mounting the UZB controller to your PC and run the PC Controller program you can click the Remove button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet will Exclusion in the network controller, while the flashing red button LED Smart Plug.
Press the button on the Smart Plug for more than 10 seconds after you plug the Smart Plug into a power outlet will make a Exclusion in the network controller, while the flashing red button LED Smart Plug. And all the variables are initialized. ※ Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable
