LG Uplus
Open Sensor
OSR-01H
Notification Sensor
HW: 1 FW: 27.14
ZM5101
6.51.06
0x022C (556)
0x0003 (3)
0x0001 (1)
ZC10-16015009
2016-01-25 13:25:58.2502
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Sensors can be installed on door and window. Main function is to alarm door and window status if these are open.
Remote Access via smart phone APP Detecting the status of Door/Windows equipped with Z-WAVE Open Sensor and notifying the status to a customer. Checking the battery usage and reporting the low battery alarm.

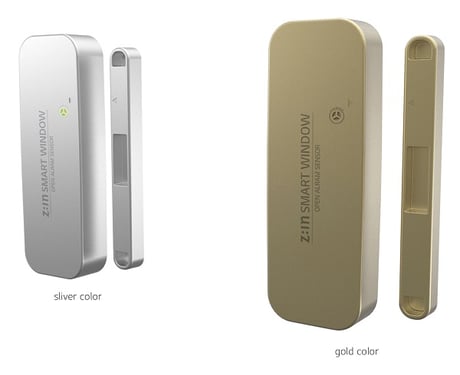

Product Picture
1 - Battery Period
Setting the battery cycleSize: 1 byte
Default: 24
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Default 24 (0x18), 0x01~0xFF in 15 minute increments |
a. Press & hold Inclusion/Exclusion button for 5 seconds when Open Sensor is exclusion status. b. LED of Open sensor will be on 5 seconds later. c. Open sensor will try Inclusion for 30sec when button is released. d. LED will blink 3 times if Inclusion is successful.
a. Receiver will stay exclusion waiting mode. b. Press & hold Inclusion/Exclusion button for 5 seconds when Open Sensor is Inclusion status. c. LED of Open sensor will be on 5 seconds later. d. Open sensor will try Exclusion when button is released. e. LED will blink 3 times if Exclusion is successful.
a. Device sends Wake up Notification by every 15 minutes. b. Devices also sends Wake up Notification when inclusion/exclusion button is shortly pressed regardless of 15minutes interval.
a. Press & hold Inclusion/Exclusion button for 10sec. b. LED will blink while holding the button. c. Factory reset will be done in 5sec after releasing button and LED will blink 5 times. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
a. Firmware auto upgrade via OTA.
