GreenWave Systems
AXON™ Home Router
GWS-HR-001
Central Controller
1.0
SD3502
6.51.06
0x0099 (153)
0x0001 (1)
0xA001 (40961)
ZC10-15120015
2015-12-30 12:47:04.978
N/A
Bridge Controller
Central Static Controller
The GWS-HR-001 Home Router enables AXON™ smart services such as home automation, smart energy and home security.
The AXON™ Home Router is a full-featured Ethernet router and WiFi Access Point. The router provides a connection to a WAN port for connecting Broadband connection such as through a Cable or DSL modem and provides home automation control through the use of Z-Wave networking technology. The Z-Wave network allows devices from multiple manufacturers to be connected to your Broadband Home Router’s internal Z-Wave Plus Controller.
To start this process, start the Include function on the pre-existing Z-Wave controller. Secondly, put the Axon™ Home Router into Learn Mode. To put the controller into Learn mode, select the Controller from the Devices Screen to bring up the details of the Controller. From the Controller details screen, you will see the option to select the “Put this Controller in Learn Mode” command button.

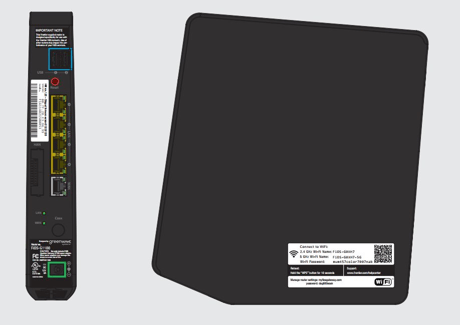

A Reboot/Reset button is located on the backside of the AXON™ Home Router. It can easily be identified on the back of the unit by its red color and location directly above the yellow RJ45 Ethernet ports and below the USB ports. Pressing the button will perform one of two functions depending on how long the button is pressed. A short press will trigger a reboot of the router and will not change any permanent settings. A long press (3 second and longer) will trigger a reset operation and then will reboot the AXON™ Home Router. A reset operation will change all router settings including the Z-Wave Controller settings back to its factory default.
Adding devices to your Z-Wave network is referred to as Inclusion. To add a device, start by pressing on the “Add Devices” button at the bottom of the SDK Application’s Devices Screen. Once this is pressed, the inclusion process is initiated and you have 60 seconds to complete the process. Before the timeout occurs, you need to perform an action on the device that you would like to add to the Z-Wave network. Many devices have a similar process for being included (such as pressing a button on the device), but you should follow the instructions provided with the device you are trying to include into the Z-Wave network.
Removing devices from your Z-Wave network is also referred to as exclusion and works in a similar way to adding devices. You start the remove process by pressing on the “Remove Devices” button at the bottom of the SDK Application’s Devices screen. Once this is pressed, the removal process is initiated and you have 60 seconds to complete the process. Before the timeout occurs, you need to perform an action on the device you would like to remove from the Z-Wave network. Many devices have a similar process for being removed (such as pressing a button on the device), but you should follow the instructions provided with the device you are trying to remove.
