Brand
Contec - intelligent housing
Name
Da Vinci Wall Controller
Part number
Da Vinci v3
Device type
Wall Controller
OEM Version
HW: 1 FW: 1.00
Hardware platform
ZM5202
Z-Wave version
6.51.06
Manufacturer ID
0x025D (605)
Product type ID
0x0100 (256)
Product ID
0x0100 (256)
Certificate number
ZC10-16015008
Certification date
2016-01-06 12:28:03.4984
EAN barcode
N/A
Library type
Enhanced 232 Slave
Role type
Always On Slave
Description
High voltage in wall controller

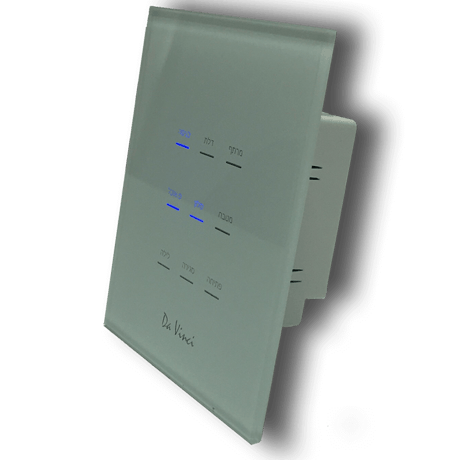

The Da Vinci wall controller is a Multi Chanel Z-Wave device that contains up to 6 relays and up to 9 touch buttons that can be set to control either the relays or any other on/off (SWITCH_BINARY) Z-Wave device.
Z-Wave Features
Categories (3)
All Lighting Devices
Lighting Accessories
On/Off Switches/Devices
Z-Wave Chip Series
500
Region (1)
0 / 0
No configuration parameters available.
Inclusion
Press button #1 for 5 seconds and release.
Exclusion
Press button #1 for 5 seconds and release.
Factory Reset
Double Press the following buttons in the following order 8,1,3. Use the reset procedure only when the primary controller is missing or inoperable.
