Secure Controls (UK)
SSR 302 (Dual Channel On/Off Power switch)
MAX10Z-382
On/Off Power Switch
HW: 1 FW: 2.1
ZM5202
6.51.06
0x0059 (89)
0x0003 (3)
0x0006 (6)
ZC10-16075133
2016-07-05 20:34:08.1384
N/A
Routing Slave
Always On Slave

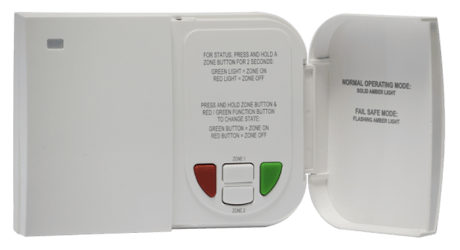

The SSR 302 is a 2-channel relay/switch, it forms part of central heating and hot water control system, it can be operated by any third party controllers/Thermostat using ‘Binary Switch CC’ commands.
The SSR 302 is a 2-channel relay/switch, it forms part of central heating and hot water control system, it can be operated by any third party controllers/Thermostat using ‘Binary Switch CC’ commands. SSR 302 will act as a repeater once added into the Z-Wave network, providing an alternative communication route for units which otherwise would not be within communication distance of each other. SSR 302 has a fail-safe mode where by the relay is turned OFF if another 'Thermostat Mode SET' command has not been received within 60 minutes.
STEP 1: Ensure the LED is flashing RED on the SSR 302, if not follow the ‘Exclusion’ steps first. STEP 2: Put the 3rd party controller into inclusion mode. STEP 3: Press and hold both white buttons on the SSR 302 until the LED starts flashing green. The SSR 302 has been added onto the network and the LED will go solid amber. NOTE: If the LED does not go solid amber then the add process has been unsuccessful.
STEP 1: Put the 3rd party controller into exclusion mode. STEP 2: Press and hold the two white buttons on the SSR 302. The SSR 302 has been removed from the network when the LED starts flashing red. NOTE: If the LED does not flash red then the remove process has been unsuccessful.
""Please use this procedure only when the primary controller is missing or otherwise inoperable."" Follow ‘Exclusion’ steps.
SSR 302 has a fail-safe mode where by the relay is turned OFF if another 'Thermostat Mode SET' command has not been received within 60 minutes.
| Type | Value(s) |
|---|
