Climax Technology
Smoke Detector
SD-16ZW
Notification Sensor
HW: 1 FW: 1.03:01.02
ZM5202
6.51.06
0x018E (398)
0x0003 (3)
0x0004 (4)
ZC10-16015007
2016-01-15 12:29:51.7608
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The SD-16ZW is a Z-Wave smoke detector with a built-in siren to sound audible alerts when alarms occur.
The SD-16ZW is a Z-Wave smoke detector with a built-in siren to sound audible alerts when alarms occur. The SD-16ZW triggers alarms by using latest optical chamber technology to detect harmful smoke particles enter its detection chamber.

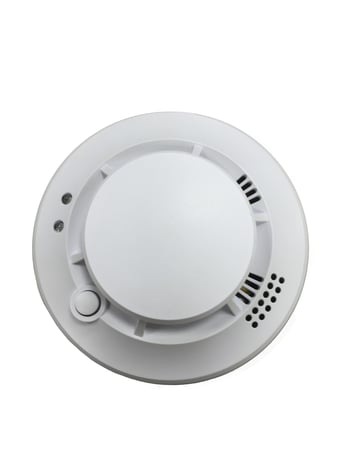

Product Picture
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. -Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual). -Within 1.5 seconds, press the Function button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for ~2 seconds. -Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process. -If the sensor has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel. -When the 1-minute warming period is over, the Smoke Detector will start calibration process.
The Smoke Detector must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode -Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). -Within 1.5 seconds, press the Function button 3 times and the Smoke Detector will be removed from the Z-Wave network.
This function uses the Z-Wave Wake Up Command Class. The Wake Up Command Class allows the battery-powered Smoke Detector to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up time is programmed automatically according to Control Panel’s setting when The Smoke Detector is included. The recommended setting of the wake up time is 60 minutes above.
(Only use factory reset when network Control Panel/Gateway is missing or inoperable). -Press and hold the Function Button of the Smoke Detector for 10 seconds to factory reset.
