Mercury
IoT hub
MC01-507L
Central Controller
HW: 1 FW: 1.01
ZM5202
6.51.06
0x022D (557)
0x0100 (256)
0x0001 (1)
ZC10-16025001
2016-02-02 09:28:06.9404
N/A
Bridge Controller
Central Static Controller
IoT home-manager hub is universal controller which can control the several control group devices.

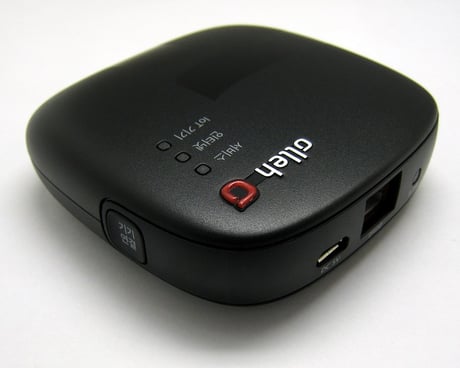

Product Picture
1. Select Controller Learn Mode Request command in the Emulator. 2. Click Kafka Send button. 3. Enter the parameter value. 4. Click Confirm button.
Press Reset button more than 5 seconds.
You can add the device ether hardware button or application. - Hard ware button : Press the Add/Remove button(Start Z-Wave LED blink) - Application : 1. Click Add the device button. 2. Click Start button. (Start blink Z-Wave LED) 3. MC01-507L put into inclusion mode and it is added the device. when finish the add device, the Z-Wave LED was green light ON.(Stop blink Z-Wave LED) 4. The home screen of the app shown the added device. 5. Click the device icon. the screen detail view about information of added-device and can control device on this screen.
You can remove the device ether hardware button or application. - hard ware button : Press the Add/Remove button(Start Z-Wave LED blink) - Application : 1. Click Menu button on the screen detail view. 2. Click Remove the device button. 3. Click Remove button. (Start blink Z-Wave LED) 4. MC01-507L put into exclusion mode and it is removed the device. when finish the remove device, the Z-Wave LED was green light OFF. (Stop blink Z-Wave LED) 5. The home screen of the app shown the removed device.
