Flood Sensor
ZW-1104
Notification Sensor
01
ZM5202
6.51.06
0x015D (349)
0x2003 (8195)
0xB41C (46108)
ZC10-16020004
2016-02-16 23:41:30.3432
N/A
Routing Slave
Reporting Sleeping Slave
Z-Wave Flood Sensor
The ZW1104 is designed to used in areas where there is a potential for water leaks – dishwashers, washing machines, hot water tanks, air conditioner condensation drip pans, etc. After mounted properly it can monitor whether water is leaking into areas. When water is detected, the sensor will transmit a alarm signal to control center and stop water immediately.

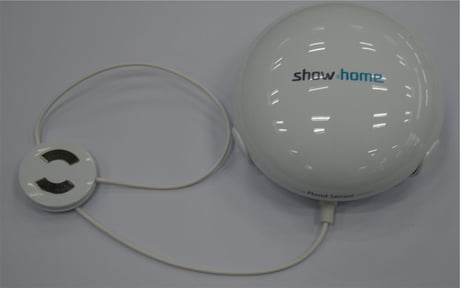

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release the toggle to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. 4. The device is associated in the same group when it included in setting process. Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the toggle to exclude it from the network.
The sensor was wake up when temper switch on or sensor detect flood after mounted on site.
1. Press and hold the top button for at least 3 seconds while you insert the batteries. 2. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
