Z-Works
Lock Dectector
DN3G6JA062
Notification Sensor
HW: 255 FW: 1.80
SD3502
6.51.03
0x024D (589)
0x4761 (18273)
0x0001 (1)
ZC10-16055078
2016-05-19 10:55:18.1682
N/A
Enhanced 232 Slave
Reporting Sleeping Slave

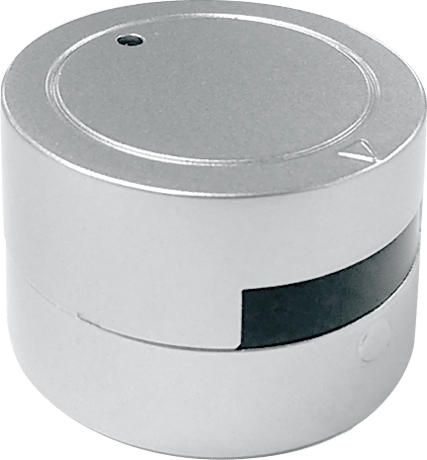

Unlock/Lock detector. By range finder, thumb-turn direction (horizontal/vertical) of a door is detected.
The sensor can remind a user to lock the door. The range finder developed for automobile was remodeled to battery-powered to adjust to Smart Home usage. It detects thumb-turn direction (horizontal/vertical) of a door.
1 - Polling interval
Checking thumb turn status intervalSize: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 127 | 30 sec to 127 seconds interval. |
2 - LED blinking mode
LED indicator for data transmission blinks when state change.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator is always off |
| 1 | 1 | LED indicator lights 1 second after thumb turn status close to open |
| 2 | 2 | LED indicator lights 1 second after thumb turn status open to close |
| 3 | 3 | LED indicator lights 1 second after changed thumb turn status |
Using a paper clip or equivalent, push the button over 3 seconds. (Please note that this product is reset if switch is pushed over 10 seconds) Status LED turns off after adding.
Using a paper clip or equivalent, push the button over 3 seconds. (Please note that this product is reset if switch is pushed over 10 seconds) Status LED starts flashing after removal is finished.
Remove the battery and put it back after making sure the device is fully discharged. The device shall send the wake up notification.
Using a paper clip or equivalent, push the button over 10 seconds. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
