TKB Home
Smart dimmer plug in switch
TZ67F
Light Dimmer Switch
HW: 1 FW: 2.00
ZM5202
6.51.06
0x0118 (280)
0x0003 (3)
0x0008 (8)
ZC10-16025011
2016-02-22 09:09:24.2112
N/A
Enhanced 232 Slave
Always On Slave
This dimmer socket is mainly for remote on/off or dim control of the connected load, and acts as repeater to enlarge the signal
This smart dimmer plug in switch in a transceiver, which is a Z-Wave enabled device, is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be use with it regardless of the manufacturer. And ours can also be used in other manufacturer's Z-Wave enabled networks. Remote on/off and dimming control of the connected load is possible with other manufacturer's wireless controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure the signal is received by its intended destination by routing the signal around obstacles and radio dead spots.

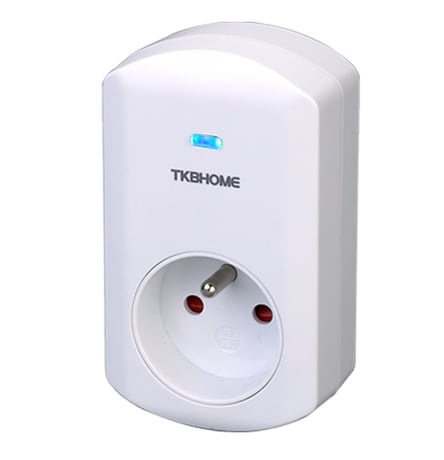

Product Picture
1. have your Z-Wave controller enter into Inclusion mode 2. press the dimmer socket button three times within 1.5 seconds
1. have your Z-Wave controller enter into Exclusion mode 2. press the dimmer socket button three times within 1.5 seconds
1. Press your dimmer socket button four times within 1.5 seconds 2. the fourth time press and hold on the socket button for 5 seconds until socket LED button off 3. Use the ""RESET"" procedure only in the event that the network primary controller is missing or otherwise inoperable
