Z-Works
LiveConnect Center

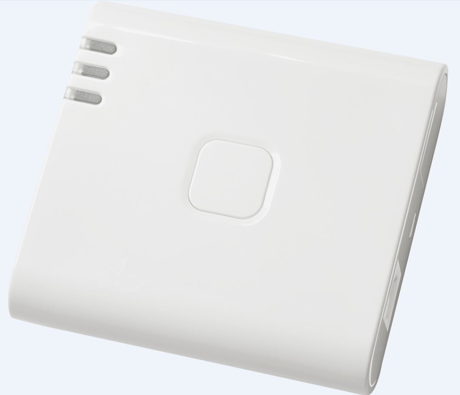

ZG-500-v1
Gateway
HW: 1 FW: 4.26:01.05
SD3502
6.51.03
0x024D (589)
0x0001 (1)
0x0001 (1)
ZC10-16045058
2016-03-16 09:39:01.3808
N/A
Static Controller
Central Static Controller
Low-priced edition gateway that supports only wired LAN.
Gateway that can be adopted in low price for Smart Home / Smart Facility where broadband is available. Using the sensors provided by Z-Works together with the gateway, the sensor data can be sent to the cloud server where the data is translated to human action and/or status. In the daily life or work scene, a user can receive notification from the cloud server based on the scenario registered in advance.
The learn mode can be done only through a provided GUI. The Gateway will try to include itself into an existing Z-Wave network. No hardware button can trigger this mode.
The reset can be done through the hardware button. A long single click (over 10 seconds) will trigger the reset. A button on the GUI is also present to start the reset (""Resets the Chip""). Please use this procedure only when the network primary controller is missing or otherwise inoperable.
The inclusion can be done through the hardware button. Triple quick click on the button will trigger the inclusion. A button on the GUI is also present to start the inclusion (""NWI"" or ""ADD"" button). The Gateway will wait for a device to be included for 60 seconds.
The exclusion can be done through the hardware button. A long single click (between 3 and 9 seconds) will trigger the exclusion. A button on the GUI is also present to start the exclusion (""Start Exclusion"" button). The Gateway will wait for a device to be excluded for 60 seconds.
