Coolcam
Door Sensor
NAS-DS01Z
Notification Sensor
41
ZM5202
6.51.06
0x0258 (600)
0x0003 (3)
0x0082 (130)
ZC10-16020010
2016-02-24 17:25:18.7452
N/A
Routing Slave
Reporting Sleeping Slave
Smart Door sensor, detect the close and open status of the door or window
Door Sensor Two status: open and close Compatible with 300 series and 500 series Power: CR14250 x1 Standby current: 1uA Battery life: 10 years Install on the door or window Easily install with screws or sticker. Operation temperature: 0-40℃ Size: Main body (L x W x H): 70mmx20mmx20mm Deputy body (L x W x H): 40mmx11mmx11mm

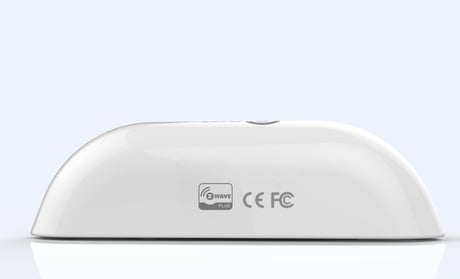

Product Picture
Add the Sensor (Door/Window detector) to Z-Wave Network 1.Remove the sensor cover. 2.Make sure the sensor is powered. 3.Set Z-Wave controller or Z-Wave gateway into inclusion mode (Refer to the controller or gateway operating manual) 4.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off alternately five times.
Delete the Sensor (Door/Window detector) from Z-Wave Network 1.Remove the device cover. 2.Make sure the sensor is powered. 3.Set Z-Wave controller or Z-Wave gateway into exclusion mode (Refer to the controller or gateway operating manual) 4.Press the button three times within 1.5 second, the device will enter exclusion mode.
Manual Wakeup the Sensor You can press the button once to wake up the device and send wakeup notification to controller. If press successfully, the LED will blink one time.
Restore the Sensor (Door/Window detector) to Factory Default Settings Reset procedure will delete all information on the Z-Wave network and Z-Wave controller or Z-Wave Gateway, and restore the sensor to factory default settings. 1.Remove the device cover. 2.Make sure the sensor is powered. 3.Press and hold the button for 10 seconds, 4.Release the button.
Advanced Configuration 1. Configuring the OFF Delay This configuration parameter that can be used to adjust the amount of delay before the OFF command is transmitted. This parameter can be configured with the value of 0 through 65535, where 0 means send OFF command immediately and 65535 means 65535 seconds of delay. Function: On/Off Duration. Parameter Number: 1. Parameter Size: 2 Byte Available Settings： 0 ~ 65535 (in seconds, each 1s). Default Setting: 0 (s) 2. Basic Set Level Basic Set Command will be sent where contains a value when the door/window is opened or closed, the receiver will take it for consideration; for instance, if a lamp module is received the Basic Set Command of which value is decisive as to how bright of dim level of lamp module shall be. Function: Basic Set Parameter Number: 2 Parameter Size: 1 Byte Available Settings： 0, 1 ~ 99 or 255 0 – OFF, Alarm cancelling or turning a device off 1 ~ 99 or 255 – ON (Binary Switch Device) Dim Level (Multilevel Switch Device) Default Setting: 255
