Coolcam
Wall Plug
NAS-WR01Z
On/Off Power Switch
41
ZM5202
6.51.06
0x0258 (600)
0x0003 (3)
0x0087 (135)
ZC10-16020013
2016-02-29 08:44:48.564
N/A
Enhanced 232 Slave
Always On Slave
Smart power plug, control the on/off of electric appliance
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. In the front casing, there is button that is used to carry out include, exclude or reset factory default settings on PCB Board. When power is first supplied, the LED will flash on and off with yellow alternately every 1 second intervals within 5 seconds if the detector has not been added a Z-Wave network, otherwise the LED will flash on and off 5 times with cyan alternately every 300 millisecond. Please get familiar with the terms below before starting the operations. This Plug has function that remembers the relay states, the plug will turn on after power up next time if the plug is turn on before the power cut-off.

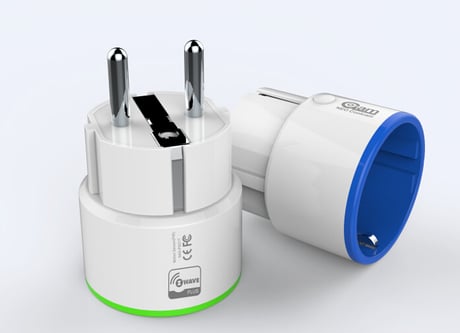

Product Picture
Add the Device (Smart Plug) to Z-Wave Network 1.Make sure the sensor is powered. 2.Set Z-Wave controller or Z-Wave gateway into inclusion mode (Refer to the controller or gateway operating manual) 3.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off with green alternately five times within 2 seconds.
Delete the Device (Smart Plug) from Z-Wave Network 1.Make sure the sensor is powered. 2.Set Z-Wave controller or Z-Wave gateway into exclusion mode (Refer to the controller or gateway operating manual) 3.Press the button three times within 1.5 second, the device will enter exclusion mode. And the LED will flash on and off with yellow alternately five times within 2 seconds.
this power plug is connected to power, not battery powered
Restore the Device (Smart Plug) to Factory Default Settings Reset procedure will delete all information on the Z-Wave network and Z-Wave controller or Z-Wave Gateway, and restore the sensor to factory default settings. 1.Make sure the sensor is powered. 2.Press and hold the button more than 10 seconds until the LED blink with red color. 3.Release the button. Notice: Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
SPECIFICATIONS Power Supply: AC110 ~ 230V(±10%), 50/60Hz Rate Load Current: 13A, 110-230V, 50/60Hz – Continuous Load 16A, 110-230V, 50/60Hz – Momentary Load Power Consumption: 0.13W EU Standards Compliance: Radio Protocol: Z-Wave Radio Frequency: EU – 868.4MHz US – 908.4MHz Valid Range: Up to 60m outdoors Up to 30m indoors (Depending on terrain and building structure) Operational Temperature: 0 – 40 ℃
