Gas Keeper
Smart Gas Keeper
HT-A10
Valve - Open/Close
HW: 1 FW: 39.16
ZM5101
6.51.06
0x024C (588)
0x0100 (256)
0x0100 (256)
ZC10-16035017
2016-03-03 11:30:04.2972
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Gas Shutoff Device
HT-A10 Z-Wave Smart Gas Keeper device has below function. GAS Valve open/close device that allows you to lock/unlock by manual or press button and checks battery status. * This must be done at GAS valve and when closed. Press Timer UP button for 5 seconds till hearing beep once. * You can set the time with Timer UP/DOWN button of the main device * You can set the time for maximum 9 hours in unit of every 10 minutes * GAS valve is closed automatically when the temperature reaches above to 65℃ inside of the gas circuit breaker

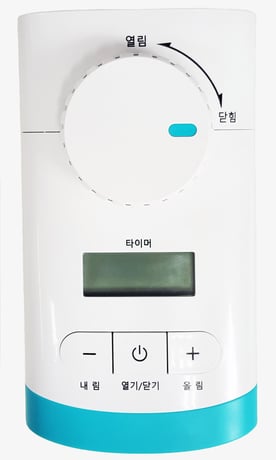

Product Picture
1 - Timer Setting
This configuration setting controls the time setting that maximum 9 hours in unit of every 10 minutes.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 54 | Time Setting |
2 - Remained Time
This configuration setting controls the remaining time of set time.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 540 | Remained Time |
This must be done at GAS valve and when closed. Press Timer UP button for 5 seconds till hearing beep once.
This must be done at GAS valve and when closed. Press Timer UP button for 5 seconds till hearing beep once.
Wake up is released the Sleep mode open/close button operation.
This must be done at GAS valve and when closed. Press Timer UP button for 10 seconds till hearing beep once. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
GAS valve is closed automatically when the temperature reaches above to 65℃ inside of the gas circuit breaker
