NodOn
Z-Wave Plus Micro Smart Plug ON/OFF
MSP-3-1-X1
On/Off Power Switch
HW: 1 FW: 1.00
ZM5202
6.51.06
0x0165 (357)
0x0001 (1)
0x0003 (3)
ZC10-16045035
2016-04-06 17:45:27.1664
N/A
Enhanced 232 Slave
Always On Slave
The NodOn Micro Smart Plug is among the world's smallest Z-Wave Smart Plug, offering in addition Power and Energy Metering Capabilities
The NodOn Micro Smart Plug can be controlled by any kind of Z-Wave® (or Z-Wave Plus®) gateway or other Z-Wave® controller (standalone mode) such as the NodOn® Soft Remote or Octan Remote. It existed in both standard, Type E (French) or Schuko (German). Its very small design and volume allow easy integration, without obstructing nearby power holes on a power strip. Furthermore, it can perform Power and Energy Metering. The NodOn Smart Plug is based on brand new 500 series Z-Wave® module from Sigma Designs®, and support all the new features of Z-Wave Plus® standard: Longer range (up to 40m), lower power consumption, higher data rate transmission, and many more new features.

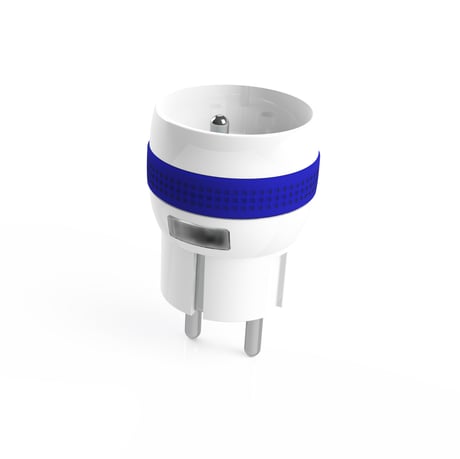

Product Picture
1 - Default State
This parameter defines the status of the Micro Smart Plug after a power outage or after being plugged.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ON |
| 1 | 1 | OFF |
| 2 | 2 | State before power outage |
3 - Follow State
This parameter allows to enable or disable Group 2 & Group 3.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Group 2 and Group 3 disable |
| 1 | 1 | Group 2 enable, Group 3 disable |
| 2 | 2 | Group 2 disable, Group 3 enable |
| 3 | 3 | Group 2 and Group 3 enable |
4 - Always ON
This parameter forces the Micro Smart Plug status to be ON. While enable it is not possible to switch OFF the plug (local or wireless).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Always ON disable |
| 1 | 1 | Always ON enable |
5 - Alarm 1 Type Configuration
This parameter is to set the Alarm 1 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
6 - Alarm 1 Specifications
This parameter is to set the Alarm 1 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
7 - Alarm 2 Type Configuration
This parameter is to set the Alarm 2 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
8 - Alarm 2 Specifications
This parameter is to set the Alarm 2 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
9 - Alarm 3 Type Configuration
This parameter is to set the Alarm 3 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
10 - Alarm 3 Specifications
This parameter is to set the Alarm 3 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
11 - Alarm 4 Type Configuration
This parameter is to set the Alarm 4 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
12 - Alarm 4 Specifications
This parameter is to set the Alarm 4 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
13 - Alarm 5 Type Configuration
This parameter is to set the Alarm 5 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
15 - Alarm 6 Type Configuration
This parameter is to set the Alarm 6 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
16 - Alarm 6 Specifications
This parameter is to set the Alarm 6 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
17 - Alarm 7 Type Configuration
This parameter is to set the Alarm 7 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
18 - Alarm 7 Specifications
This parameter is to set the Alarm 7 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
19 - Alarm 8 Type Configuration
This parameter is to set the Alarm 8 Type. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
20 - Alarm 8 Specifications
This parameter is to set the Alarm 8 Specifications. Use the Home Automation Gateway interface or our Alarm set-up form to define the value corresponding to your need.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2097151999 | To set-up your values please follow this link : www.nodon.fr/support/msp3/alarm |
21 - Power Auto-Sending Report
This parameter will send a power report automatically if the power value changes of x % W (Watt) compared to the last report.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power Auto-Polling Report Disable |
| 1 | 100 | Power Auto-Polling Report Enable with 1% (to100%) differential |
22 - Overload Report
This parameter will switch off the Micro Smart Plug in case the power is above x W (Watt) and send an alarm to the primary controller. This parameter has the highest execution priority between all the metering configurations for security reason.Size: 2 bytes
Default: 1840
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Overload Report Disable (Not Recommended) |
| 1 | 1840 | Overload Report enable with a upper limit of 1 W (to 1840 W) |
23 - Energy Auto-Sending Report
This parameter will send a new energy report automatically if the energy value changes of x Wh (Watt-hour) compared to the last report.Size: 2 bytes
Default: 1000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Energy Auto-Polling Report Disable |
| 1 | 65535 | Energy Auto-Polling Report enable with 1 Wh (to 65535 Wh) diffential |
24 - Metering Pulse
Whatever other metering reports, this parameter will send one power and one energy report to the lifeline every x s (Seconds).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Metering Pulse disable |
| 1 | 65535 | Metering Pulse enable and send report every 1 s (to 65535 s) |
25 - Power High Threshold
This parameter defines the High Threshold power value.Size: 2 bytes
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power High Threshold disable |
| 1 | 65535 | Power High Threshold enable with the value from 1 W (to 65535 W) |
26 - Power Low Threshold
This parameter defines the Low Threshold power value.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power Low Threshold disable |
| 1 | 65535 | Power Low Threshold enable with the value from 1 W (to 65535 W) |
27 - Power Threshold Action
This parameter will define the Micro Smart Plug actions if the power Low and High Threshold are reached. The value may be the sum of available values. For example, if you want: - Power High Threshold Action is enable and sent ON to Group 4(3) - Power Low Threshold Action is enable and sent OFF to Group 5 (4) the parameter value must be 3+4=7.Size: 1 byte
Default: 7
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power Threshold Action is disable. |
| 1 | 1 | Power High Threshold Action is enable and send the command OFF to Group 4 |
| 3 | 3 | Power High Threshold Action is enable and send the command ON to Group 4 |
| 4 | 4 | Power Low Threshold Action is enable and send the command OFF to Group 5 |
| 12 | 12 | Power Low Threshold Action is enable and send the command ON to Group 5 |
To include/add to the Z-Wave network, long press during 2 seconds to send several NIF during 30 seconds or a triple press to send a single NIF
To exclude/remove from the Z-Wave network, long press during 2 seconds to send several NIF during 30 seconds or a triple press to send a single NIF
To reset, long press during more than 5 seconds then release. Please use this procedure only when the primary controller is missing or otherwise inoperable.
Power/Energy metering and Alarm priority management (check user guide for full details)
