U-Fairy G. R.
Power Switch
GR-201N
On/Off Power Switch
HW: 2 FW: 0.02
ZM5202
6.51.06
0x0152 (338)
0x0003 (3)
0x0002 (2)
ZC10-16035022
2016-03-22 11:32:16.2536
N/A
Routing Slave
Always On Slave
16A/ 100~240V power switch, standby power less 0.5W
The power switch have build in over-load protection, max curtain 16A relay and standby power less than 0.5W. This module will send On/Off signal to the appliance that attached to this module by receiving Z-Wave™ signal from controller or manually switch. This module also acts as repeater and can also be used in other manufacturer’s Z-Wave™ enabled networks.

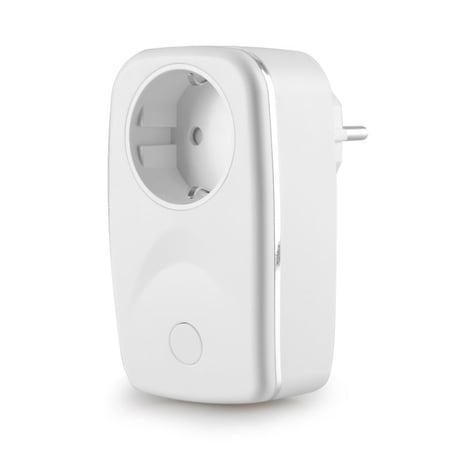

Product Picture
Please press the Z-Wave button when the Z- Wave controller sends the instructions for inclusion, Press the Button 3 times it will send the NIF
Please press the Z-Wave button when the Z-Wave controller sends the instructions for exclusion, Press the Button: 3 times it will send the NIF
Press and hold the button 10 seconds . The device will send the reset notification to the list node in the group1 and erases the device memory. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
