Ei Electronics
10 Year Z-Wave Smoke Alarm
Ei600ZW
Notification Sensor
HW: 1 FW: 1.00
ZM5202
6.51.06
0x026B (619)
0x0004 (4)
0x0003 (3)
ZC10-16035024
2016-03-23 11:48:30.4028
N/A
Enhanced 232 Slave
Listening Sleeping Slave

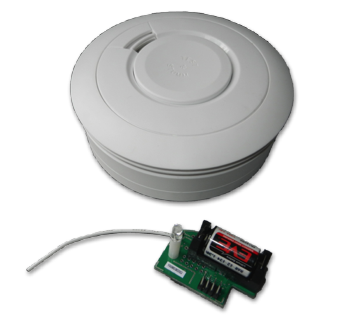

This product consists of a standard high-quality, 10 year sealed-battery photoelectric Smoke Alarm designed to European standards, combined with a plug-in Z-Wave wireless communication module. The Smoke Alarm will also work as a stand-alone product and is certified by VDS as '10 year Smoke Alarm' and satisfies all EN14604 requirements. Patented, high-performance optical chamber with integral micro-mesh fixed insect screen further reduces the possibility of false alarms.
This product consists of a standard high-quality, 10 year sealed-battery photoelectric Smoke Alarm designed to European standards, combined with a plug-in Z-Wave wireless communication module. The Smoke Alarm will also work as a stand-alone product and is certified by VDS as '10 year Smoke Alarm' and satisfies all EN14604 requirements. Patented, high-performance optical chamber with integral micro-mesh fixed insect screen further reduces the possibility of false alarms. A large test button allows on-device testing of smoke chamber, electronics and battery. The device also offers a built-in self-test and an electronic smoke chamber test making the use of test aerosol unnecessary. A low battery warning will last for 30 days, but full function of the Alarm will continue during this time. The Z-Wave module allows the device to report smoke and low battery alarms wirelessly to a central Z-Wave Controller.

View configuration parameters (4)
1 - Siren alarm sequence interval
The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the interval in seconds.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 6 | 129 | seconds |
2 - Siren alarm tone length
The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the sound versus silence within this interval. Please make sure this value is always smaller (shorter time) than parameter 1 that defines the whole sequence.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 1 | 99 | seconds |
3 - Value of On-Command
This value is sent as BASIC Set to Association Group 3 when an Smoke Alarm occurs.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 0 | 0 |
4 - Value of Off-Command
This value is sent as BASIC Set to Association Group 3 when an Smoke Alarm is cleared.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 0 | 0 |
Operating instructions (3)
To include the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second
To exclude the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second
To reset the device keep the button pushed for 10 seconds. After 5 seconds the led starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | EI600ZW_ManualCERT.pdf |
