Ei Electronics
Z-Wave Carbon Monoxide Alarm
Ei200ZW
Notification Sensor
HW: 1 FW: 1.00
ZM5202
6.51.06
0x026B (619)
0x0x04 (0)
0x0x03 (0)
ZC10-16035025
2016-03-23 11:49:24.9872
N/A
Enhanced Slave
Reporting Sleeping Slave
This premium quality electrochemical Carbon Monoxide Alarm designed to European standards, provides a 10 year sensor life and includes a powered-for-life sealed lithium battery. The plug-in Z-Wave Communication Module is powered separately via a single replaceable 3V CR2 battery.
This premium quality electrochemical Carbon Monoxide Alarm designed to European standards, provides a 10 year sensor life and includes a powered-for-life sealed lithium battery. The plug-in Z-Wave Communication Module is powered separately via a single replaceable 3V CR2 battery. The CO Sensor is monitored electronically and will report the following: 1. Alarm on Sensing Carbon Monoxide 2. Battery status reporting 3. Sensor Fault 4. Alarm removal from mounting plate 5. Sensor End of Life The device is a secure Z-Wave Plus device and can be used in one wireless Z-Wave network with other certified devices regardless of origin and brand.

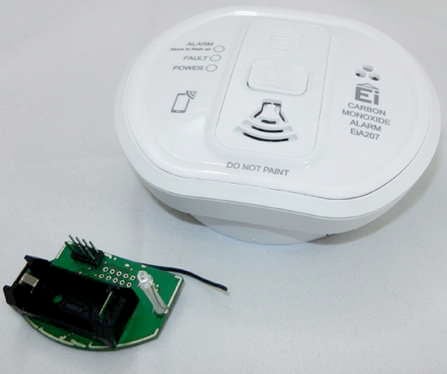

Product Picture
1 - Value of On-Command
Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value |
| 0 | 0 |
2 - Value of Off-Command
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value |
| 0 | 0 |
Pressing the button 'Inclusion Button' for one second will include the device. If the button is pressed for at least 2 seconds the inclusion will be done without the Security Command Class.
A single click on the button will exclude the device.
A single click on the button will wakeup the device.
To do a factory reset press the button on the bottom of the device for at least 10 seconds. This procedure should only be used when the primary controller is inoperable.
