FIBARO
FIBARO Dimmer 2
FGD-212
Light Dimmer Switch
HW: 2 FW: 3.05:03.05
ZM5202
6.51.06
0x010F (271)
0x0102 (258)
0x1000 (4096)
ZC10-16045036
2016-04-06 18:16:40.82
N/A
Enhanced 232 Slave
Always On Slave
Remotely controlled light dimming module is designed to work with various types of light sources in 2 or 3-wire connection so it can operate with or without neutral lead.
Fibaro Dimmer can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. Dimmer 2 is equipped with a smart algorithm of light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources in 3-wire connection. Active power and energy consumption allows to monitor and reduce electricity bills. Dimmer 2 is compatible with any Z-Wave or Z-Wave Plus Controller. FIBARO Dimmer 2 Product Identifier: FGD-212 Brand Name: FIBARO Z-Wave Certification Number: ZC10-15090017 Z-Wave Certification Date: 9/16/2015 Z-Wave Protocol Implementation Conformance Statement: View Download Remotely controlled light dimming module is designed to work with various types of light sources in 2 or 3-wire connection so it can operate with or without neutral lead. Fibaro Dimmer can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. Dimmer 2 is equipped with a smart algorithm of light source detection which makes configuration easier and ensures high compatibility of the device. It may be used as a switch with non-dimmable light sources in 3-wire connection. Active power and energy consumption allows to monitor and reduce electricity bills. Dimmer 2 is compatible with any Z-Wave or Z-Wave Plus Controller. As a dimmer it operates under the following loads: • 230V operated conventional incandescent and halogen light sources • ELV electronic transformers (12V operated halogen lamps and dimmable LED bulbs) • MLV ferromagnetic transformers with 12V operated halogen lamps • dimmable LED bulbs • dimmable compact fluorescent CFL tube lamps • supported dimmable light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 Without dimming function it may work with: • compact fluorescent lamps • fluorescent tube lamps with electronic ballast • LED bulbs (power factor > 0.7) • supported light sources with minimal power of 5VA (power factor > 0.5) using FIBARO Bypass FGB-002 https://www.youtube.com/watch?v=K35uFXoa5c0

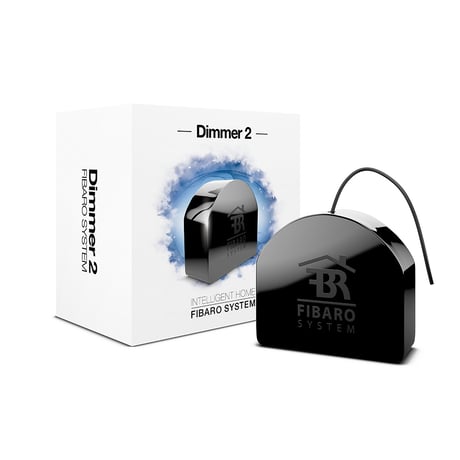

Product Picture
1 - Minimum brightness level
The parameter can be changed manually after the calibration. 1-98 - percentage level of brightness CAUTION The maximum brightness level (parameter 2) must be greater than the minimum brightness level (parameter 1).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 98 |
2 - Maximum brightness level
The parameter can be changed manually after the calibration 2-99 - percentage level of brightnessSize: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 99 | |
| 0 | 0 |
3 - Incandescence level of dimmable compact fluorescent lamps
Virtual value set as a percentage level between parameters MIN (1%) and MAX. (99%). The Dimmer 2 will set to this value after first switch on. It is required for warming up and switching dimmable compact fluorescent lamps and certain types of light sources. 1-99 - percentage level of brightnessSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | percentage level of brightness |
4 - Incandescence time of dimmable compact fluorescent lamps
This parameter determines the time required for switching compact fluorescent lamps and certain types of light sources. Setting this parameter to 0 will disable the incandescence functionality. 0s - 25,5sSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | 0s - 25,5s |
5 - Automatic control - dimming step size
dimming step percentage valueSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | dimming step percentage value |
6 - Time of a dimming step at automatic control
(0s - 2,55s)Size: 2 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | (0s - 2,55s) |
7 - Manual control - dimming step size
dimming step percentage valueSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | dimming step percentage value |
8 - Manual control - time of a dimming step
0s - 2,55sSize: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | 0s - 2,55s |
9 - Saving the state of the device after a power failure
The Dimmer 2 will return to the last state before power failure. 1 - the Dimmer saves its state before power failure. 0 - the Dimmer 2 does not save the state before a power failure, it returns to off positionSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | the Dimmer saves its state before power failure. |
| 0 | 0 | the Dimmer 2 does not save the state before a power failure, it returns to off position |
10 - Timer functionality (auto - off)
0 - Function disabled 1-32767 - time to turn off measured in seconds (1s-9.1h)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Function disabled |
| 1 | 32767 | time to turn off measured in seconds (1s-9.1h) |
11 - ALL ON/ALL OFF function
0 - ALL ON not active, ALL OFF not active 1 - ALL ON not active, ALL OFF active 2 - ALL ON active, ALL OFF not active 255 - ALL ON active, ALL OFF activeSize: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ALL ON not active, ALL OFF not active |
| 1 | 1 | ALL ON not active, ALL OFF active |
| 2 | 2 | ALL ON active, ALL OFF not active |
| 255 | 255 | ALL ON active, ALL OFF active |
13 - Force auto-calibration
Changing value of this parameter will force the calibration process. During the calibration parameter is set to 1 or 2 and switched to 0 upon completion. 0 - readout 1 - force auto-calibration of the load without FIBARO Bypass 2 2 - force auto-calibration of the load with FIBARO Bypass 2Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | readout |
| 1 | 1 | 1 - force auto-calibration of the load without FIBARO Bypass 2 |
| 2 | 2 | force auto-calibration of the load with FIBARO Bypass 2 |
14 - Auto-calibration status
This parameter determines operating mode of the Dimmer 2 (automatic/ manual settings). 0 - calibration procedure not performed or Dimmer 2 operates on manual settings 1 - Dimmer 2 operates on auto-calibration settingsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | calibration procedure not performed or Dimmer 2 operates on manual settings |
| 1 | 1 | Dimmer 2 operates on auto-calibration settings |
15 - Burnt out bulb detection
Function based on the sudden power variation of a specific value, interpreted as a LOAD ERROR. 0 - function disabled 1-99 - percentage value of power variation, compared to standard power consumption, measured during the calibration procedure (to be interpreted as load error/burnt out bulb) CAUTION Parameter 15 is relevant only when parameter 58 is set to 0 and the control mode is consistent with the mode set during the calibration process (parameter 30).Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function disabled |
| 1 | 99 | percentage value of power variation, compared to standard power consumption, measured during the calibration procedure (to be interpreted as load error/burnt out bulb) |
16 - Time delay of a burnt out bulb (parameter 15) or overload (parameter 39) detection
Time of delay (in seconds) for power variation detection, interpreted as a LOAD ERROR or OVERLOAD detection (too much power connected to the Dimmer 2). 0 - detection of a burnt out bulb disabled 1-255 - delay time in secondsSize: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | detection of a burnt out bulb disabled |
| 1 | 255 | delay time in seconds |
19 - Forced switch on brightness level
If the parameter is active, switching on the Dimmer 2 (S1 single click) will always set this brightness level. 0 - function disabled 1-99 - percentage level of brightnessSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function disabled |
| 1 | 99 | percentage level of brightness |
20 - Switch type
Choose between momentary, toggle and roller blind switch. 0 - momentary switch 1 - toggle switch 2 - roller blind switch - two switches operate the Dimmer 2 (S1 to brighten, S2 to dim)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | momentary switch |
| 1 | 1 | toggle switch |
| 2 | 2 | roller blind switch - two switches operate the Dimmer 2 (S1 to brighten, S2 to dim) |
21 - The value sent to associated devices on single click
0 - 0xFF value is sent, which will set associated devices to their last saved state 1 - current Dimmer 2 state is sent, which will synchronize brightness level of associated devices (other dimmers for example)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0xFF value is sent, which will set associated devices to their last saved state. |
| 1 | 1 | Current Dimmer state is sent, which will synchronize brightness level of associated devices (other Dimmers for example). |
| 0 | 0 | energy reports disabled |
| 1 | 255 | (0,01 - 2,55 kWh) - report triggering threshold |
22 - Assign bistable key status to the device status
0 - device changes status on switch status change 1 - device status is synchronized with switch statusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device changes status on key status change. |
| 1 | 1 | Device status is synchronized with key status. |
23 - Double click option
0 - double click disabled 1 - double click enabledSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | double click disabled; |
| 1 | 1 | double click enabled. |
24 - Command frames sent in 2-nd and 3-rd association groups (S1 associations)
Parameter determines, which actions will not result in sending frames to association groups. 0 - all actions send to association groups 1 - do not send when switching ON (single click) 2 - do not send when switching OFF (single click) 4 - do not send when changing dimming level (holding and releasing) 8 - do not send on double click 16 - send 0xFF value on double click NOTE Parameter 24 values may be combined, e.g. 1+2=3 means that associations on switching ON or OFF the Dimmer 2 (single click) will not be sent.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | all actions send to association groups; |
| 1 | 1 | do not send when switching on the Dimmer (single click); |
| 2 | 2 | do not send when switching off the Dimmer (single click); |
| 4 | 4 | do not send when changing dimming level (holding and releasing); |
| 8 | 8 | do not send on double click; |
| 16 | 16 | send 0xFF value on double click. |
25 - Command frames sent in 4-th and 5-th association groups (S2 associations)
Parameter determines, which actions will not result in sending frames to association groups. 0 - all actions send to association groups 1 - do not send when switching ON (single click) 2 - do not send when switching OFF (single click) 4 - do not send when changing dimming level (holding and releasing) 8 - do not send on double click 16 - send 0xFF value on double click NOTE Parameter 25 values may be combined, e.g. 1+2=3 means that associations on switching ON or OFF the Dimmer 2 (single click) will not be sent.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | all actions send to association groups; |
| 1 | 1 | do not send when switching on the Dimmer (single click); |
| 2 | 2 | do not send when switching off the Dimmer (single click); |
| 4 | 4 | do not send when changing dimming level (holding and releasing); |
| 8 | 8 | do not send on double click; |
| 16 | 16 | send 0xFF value on double click |
26 - The function of 3-way switch
Switch no. 2 controls the Dimmer 2 additionally (in 3-way switch mode). Function disabled for parameter 20 set to 2 (roller blind switch). 0 - 3 - way switch function for S2 disabled 1 - 3 - way switch function for S2 enabledSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | way switch function for S2 disabled; |
| 1 | 3 | way switch function for S2 disabled; |
27 - Associations in Z-Wave network security mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st Lifeline group. 0 - all groups (II-V) sent as non-secure 1 - 2nd group sent as secure 2 - 3rd group sent as secure 4 - 4th group sent as secure 8 - 5th group sent as secure 15 - all groups (II-V) sent as secure NOTE Parameter 27 values may be combined, e.g. 1+2=3 means that 2nd & 3rd group are sent as secure.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | all groups (II-V) sent as non-secure |
| 1 | 2 | group sent as secure |
| 2 | 3 | group sent as secure |
| 4 | 4 | group sent as secure |
| 8 | 5 | group sent as secure |
| 15 | 15 | groups (II-V) sent as secure |
28 - Scene activation functionality
SCENE ID depends on the switch type configurations. 0 - functionality deactivated 1 - functionality activated NOTE Enabling scene activation functionality may cause slight delay in response to external switches and sending associations.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | functionality deactivated; |
| 1 | 1 | functionality activated. |
29 - Switch functionality of S1 and S2
0 - standard mode 1 - S1 operates as S2, S2 operates as S1Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | standard mode; |
| 1 | 1 | operates as S2, S2 operates as S1. |
30 - Load control mode
Forced auto-calibration will set this parameter’s value to 2. 0 - forced leading edge control 1 - forced trailing edge control 2 - control mode selected automatically (based on auto-calibration) CAUTION Modifications of parameters in GROUP 30 should be performed only by a qualified installer.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | forced leading edge control; |
| 1 | 1 | forced trailing edge control; |
| 2 | 2 | control mode selected automatically (based on auto-calibration). |
31 - Load control mode recognized during auto-calibration
0 - leading edge 1 - trailing edgeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | leading edge; |
| 1 | 1 | trailing edge. |
32 - On/Off mode
This mode is necessary while connecting non-dimmable light sources. Setting this parameter to 1 automatically ignores brightening/ dimming time settings. Forced auto-calibration will set this parameter’s value to 2. 0 - on/off mode disabled (dimming is possible) 1 - on/off mode enabled (dimming is not possible) 2 - mode selected automaticallySize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | on/off mode disabled (dimming is possible); |
| 1 | 1 | on/off mode enabled (dimming is not possible |
| 2 | 2 | mode selected automatically |
33 - Dimmability of the load
0 - Load recognized as dimmable 1 - Load recognized as non-dimmableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Load recognized as dimmable; |
| 1 | 1 | Load recognized as non-dimmable |
34 - Soft-Start functionality
Time required to warm up the filament of halogen bulb. 0 - no soft-start 1 - short so ft-start (0.1s) 2 - long soft-start (0.5s)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no soft-start; |
| 1 | 1 | short soft-start (0,1s) |
| 2 | 2 | long soft-start (0,5s) |
35 - Auto-calibration after power on
This parameter determines the trigger of auto-calibration procedure, e.g. power on, load error, etc. 0 - No auto-calibration of the load after power on 1 - Auto-calibration performed after first power on 2 - Auto-calibration performed after each power on 3 - Auto-calibration performed after first power on or after each LOAD ERROR alarm (no load, load failure, burnt out bulb), if parameter 37 is set to 1 also after alarms: SURGE (Dimmer 2 output overvoltage) and OVERCURRENT (Dimmer 2 output overcurrent) 4 - Auto-calibration performed after each power on or after each LOAD ERROR alarm (no load, load failure, burnt out bulb), if parameter 37 is set to 1 also after alarms: SURGE (Dimmer 2 output overvoltage) and OVERCURRENT (Dimmer 2 output overcurrent)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No auto-calibration of the load after power on |
| 1 | 1 | Auto-calibration performed after first power on |
| 2 | 2 | Auto-calibration performed after each power on |
| 3 | 3 | Auto-calibration performed after first power on or after each LOAD ERROR alarm |
37 - Behaviour of the Dimmer after overload or surge.
0 - device permanently disabled until re-enabling by command or external switch 1 - three attempts to turn on the loadSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | device permanently disabled until re-enabling by command or external switch |
| 1 | 1 | three atempts to turn on the load |
39 - Power limit - OVERLOAD
Reaching the defined value will result in turning off the load. Additional apparent power limit of 350VA is active by default. 0 - functionality disabled 1-350 - 1-350W NOTE Parameter 39 is relevant only when parameter 58 is set to 0.Size: 2 bytes
Default: 250
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | functionality disabled |
| 1 | 350 | 1W-350W |
40 - Response to General Purpose Alarm
0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinkingSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Turn on the load |
| 2 | 2 | Turn off the load |
| 3 | 3 | Load blinking |
41 - Response to Water Flooding Alarm
0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinkingSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Turn on the load |
| 2 | 2 | Turn off the load |
| 3 | 3 | Load blinking |
42 - Response to Smoke, CO or CO2 Alarm
0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinkingSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Turn on the load; |
| 2 | 2 | Turn off the load |
| 3 | 3 | Load blinking |
43 - Response to Temperature Alarm
0 - No reaction 1 - Turn on the load 2 - Turn off the load 3 - Load blinkingSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Turn on the load |
| 2 | 2 | Turn off the load |
| 3 | 3 | Load blinking |
44 - Time of alarm state
1-32767 (1-32767 seconds)Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | 1s - 32767s |
45 - OVERLOAD alarm report
0 - No reaction 1 - Send an alarm frameSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Send and alarm frame |
46 - LOAD ERROR alarm report
0 - No reaction 1 - Send an alarm frameSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Send and alarm frame |
47 - OVERCURRENT alarm report
0 - No reaction 1 - Send an alarm frameSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Send and alarm frame |
48 - SURGE alarm report
0 - No reaction 1 - Send an alarm frameSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Send and alarm frame |
49 - OVERHEAT and VOLTAGE DROP alarm report
0 - No reaction 1 - Send an alarm frameSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No reaction |
| 1 | 1 | Send and alarm frame |
50 - Active power reports
The parameter defines the power level change that will result in a new power report being sent. The value is a percentage of the previous report. 0 - power reports disabled 1-100 (1-100%) - power report thresholdSize: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | power reports disabled |
| 1 | 100 | (1-100%) - power report threshold |
52 - Periodic active power and energy reports
Parameter 52 defines a time period between consecutive reports. Timer is reset and counted from zero after each report. 0 - periodic reports disabled 1-32767 (1-32767 seconds)Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 1 | 32767 | (1-32767 seconds) |
53 - Energy reports
Energy level change which will result in sending a new energy report. 0 - energy reports disabled 1-255 (0.01-2.55 kWh) - report triggering thresholdSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0xFF value is sent, which will set associated devices to their last saved state. |
| 1 | 1 | Current Dimmer state is sent, which will synchronize brightness level of associated devices (other Dimmers for example). |
| 0 | 0 | energy reports disabled |
| 1 | 255 | (0,01 - 2,55 kWh) - report triggering threshold |
54 - Self-measurement
The Dimmer 2 may include active power and energy consumed by itself in reports sent to the main controller. 0 - Self-measurement inactive 1 - Self-measurement activeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Self-measurement inactive |
| 1 | 1 | Self-measurement active |
58 - Method of calculating the active power
This parameter defines how to calculate active power. It is useful in a case of 2-wire connection with light sources other than resistive. 0 - measurement based on the standard algorithm 1 - approximation based on the calibration data 2 - approximation based on the control angle NOTE Parameter 58 is set to 0 after forced auto-calibration.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | measurement based on the standard algorithm |
| 1 | 1 | approximation based on the calibration data |
| 2 | 2 | approximation based on the control angle |
59 - Approximated power at the maximum brightness level
This parameter determines the approximate value of the power that will be reported by the device at its maximum brightness level. 0-500 (0-500W) - power consumed by the load at the maximum brightness level. NOTE Parameter 59 works only when parameter 58 has a value other than 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 500 | (0-500W) - power consumed by the load at the maximum brightness level. |
1) Switch off the mains voltage. 2) Open the wall switch box. 3) Connect the Dimmer in accordance with one of the diagrams attached in the manual. 4) Switch on the mains voltage. 5) Wait for the calibration process to end. Light may blink. The device will be switched off once the process is completed. 6) Set the main Z-Wave controller into learning mode. 7) Quickly, three times press the B-button or key connected to the S1 terminal. 8) Wait for the device to be included into system. Successful inclusion will be confirmed by the controller. 9) Arrange the antenna and close the wall switch box.
1) Set the main Z-Wave controller into learning mode. 2) Quickly, three times press the B-button or key connected to the S1 terminal. 3) Wait for the device to be excluded from the system. Successful exclusion will be confirmed by the controller.
The Fibaro Dimmer 2 is powered with mains voltage so it is always awake.
1) Disconnect the power supply, remove the Dimmer from the wall switch box, than connect the power supply. 2) Locate the B-button on the housing. 3) Click and hold the B-button to enter the menu mode. 4) Release and click the B-button to choose ""Device reset"" option in the menu that is signaled with the yellow LED indicator colour. 5) After few seconds the device will be restarted, which is signaled with the red LED indicator colour and entering the calibration mode. Note! Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable.
Active power and metering functionality Soft start function Memory of the last lighting level settings Z-Wave range tester LED diode
