Data Collecting Module NEVOTON DCM-5.1.1-Z
DCM-5.1.1-Z
On/Off Power Switch
HW: 1 FW: 1.05
ZM5202
6.51.06
0x0227 (551)
0x0100 (256)
0x0100 (256)
ZC10-16045052
2016-04-22 12:55:30.3556
N/A
Enhanced 232 Slave
Always On Slave
NEVOTON DCM-5.1.1-Z - is a Z-Wave Input-Output module 5th channel which is intended for industrial and household sensors with electrical outputs of different types (e.g., 4-20 mA, 0-10V, dry contact, and thermocouples and thermistors).
NEVOTON DCM-5.1.1-Z - is a Z-Wave device which is intended for industrial and household sensors with electrical outputs of different types (e.g., 4-20 mA, 0-10V, dry contact, and thermocouples and thermistors). The data collecting module NEVOTON DCM-5.1.1-Z can manage with 5 sensors at the same time, as well as it is able to control one external device (has one switching relay). List of the types of respondents sensors corresponds to the modern equipment of industrial automation: 1. Platinum thermistor 50, 100, 500, 1000. Accuracy: 0,1°С, measurement error: above 0,1% 2. Copper thermistor 50, 100, 500, 1000. Accuracy: 0,1°С, measurement error: above 0,1% 3. Thermocouples: R,S,B,J,T,E,K,N,A,L,M types. Accuracy: 1°С, measurement error: above 0,1% 4. DC current signal 0..5 mA. Measurement error: above 0,1% 5. DC current signal 0..20 mA. Measurement error: above 0,1% 6. DC current signal 4..20 mA. Measurement error: above 0,1% 7. DC voltage signal 0..10 V. Measurement error: above 0,1% 8. DC voltage signal -50..+50 mV Measurement error: above 0,1% 9. DC voltage signal 0..1 V Measurement error: above 0,1% 10. Dry contact 11. Flap position sensor 0..900 Ohm 12. Flap position sensor 0..2000 Ohm

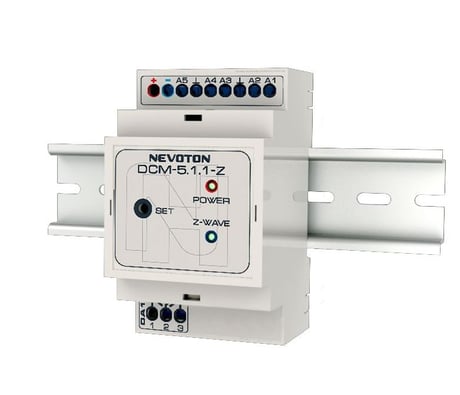

Product Picture
For adding the device to the Z-Wave network the triple click of the Set button is needed.
To remove the device from the Z-Wave network click the Set button trice again.
Hold the Set button pushed for 5 seconds, then push it three times shortly. The Z-Wave indicator alternately flashes red and green. After that the triple-click is needed. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
