Zooz
Indoor Siren
ZSE01
Siren
HW: 2 FW: 0.02
ZM5202
6.51.06
0x027A (634)
0x0003 (3)
0x0003 (3)
ZC10-16045044
2016-04-18 14:04:48.3352
N/A
Routing Slave
Always On Slave
Z-Wave Plus audible and visual alarm siren for indoor use.
The Zooz Indoor Siren ZSE01 allows brings wireless control to a well-designed visual and audible alarm. Trigger the siren when other smart home devices detect unexpected activity and receive notifications when the alarm goes off. Z-Wave gateway controller required (sold separately). The siren acts as signal repeater when powered by AC adapter and is equipped with Z-Wave Plus for faster and more reliable wireless communication. Volume: 110dB Power: DC 5V/1A and 4 AAA (1.2V) batteries for back-up power Range: Up to 100 feet line of sight Operating Temperature: 14°F to 122°F Operating Humidity: ≤ 80% Installation and Use: Indoor only

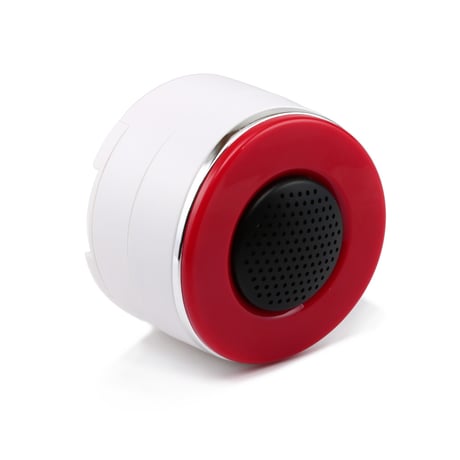

Product Picture
1. Power the siren up and bring it in within 3 feet from your controller. 2. Put your Z-Wave controller in inclusion mode. 3. Press the Z-Wave button on the siren THREE times quickly. 4. A new alarm device should appear on your controller's dashboard.
1. Bring the siren within 3 feet from your Z-Wave gateway controller. 2. Put your Z-Wave controller in exclusion/unpairing mode. 3. Press and release the Z-Wave button on the siren THREE TIMES quickly. 4. The device should disappear from your controller's device list. Please repeat the process following all steps carefully if first attempt is unsuccessful
Press the Z-Wave button on the siren THREE times quickly to put the device in wake-up mode.
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, press and hold the Z-Wave button for 10 seconds. NOTE: All previously recorded activity and custom settings will be erased from the siren’s memory.
