Zooz
Valve Control
ZAC03
Valve - Open/Close
HW: 2 FW: 0.02
ZM5202
6.51.06
0x027A (634)
0x0003 (3)
0x0512 (1298)
ZC10-16045045
2016-04-18 14:06:32.0752
N/A
Routing Slave
Always On Slave
Z-Wave water / gas valve controller for home automation systems (Z-Wave gateway controller needed). DIY, easy installation, no plumbing required.
Once the Z-Wave valve control is added to your network, you are able to close and open the valve from your mobile device or a computer. Depending on your Z-Wave gateway's home automation software you may be able to associate Z-Wave valve control device in groups with other Z-Wave devices to schedule scenes or create events. Example: if a water sensor detects water your gateway will send a signal to shut the water valve off. Or, you'll be able to turn your vacation home water valve on or off remotely. - Indoor installation only! - Adjustable bracket fits all standard ball valves. - Compatible with standard Z-Wave home automation systems supporting binary switch command. - Z-Wave Plus with improved 500 chip for faster and safer wireless communication. - Built-in Z-Wave signal repeater.

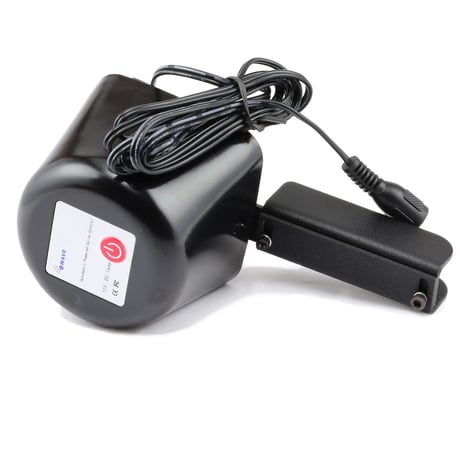

Product Picture
1. Plug the valve control in within 3 feet from your controller. 2. Put your Z-Wave controller in inclusion mode. 3. Press the red power button on the valve control THREE times quickly. 4. A new on-off device should appear on your controller's dashboard.
1. Plug the valve control in within 3 feet from your controller. 2. Put your Z-Wave controller in exclusion mode. 3. Press the red power button on the valve control THREE times quickly. 4. The device should disappear from your controller's dashboard.
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, please press and hold the red power button for 10 seconds. The LED indicator on the device will flash to indicate the process has been successfully completed. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
MANUAL OPERATION: In case of power failure, device malfunction, or other emergency, you may need to manipulate valve handle manually: pull and hold the clutch down while simultaneously turning the rocker arm to the side to open or close valve.
