Autarco
Micro Inverter
80825401.0
Other
HW: 10 FW: 1.01
ZM5202
6.51.06
0x008A (138)
0x0036 (54)
0x0100 (256)
ZC10-16075151
2016-07-24 23:09:23.7402
N/A
Enhanced 232 Slave
Reporting Sleeping Slave

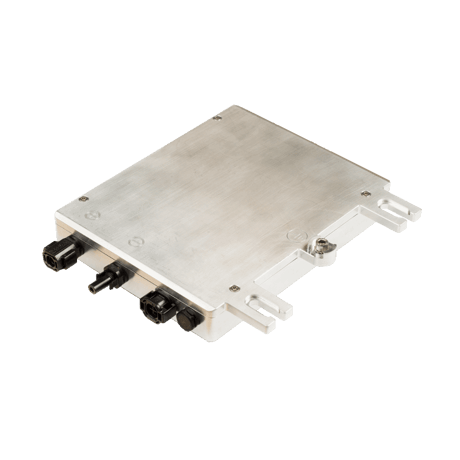

A device that measures information gathered on a single solar panel.
The advantage of micro inverters compared to string inverters is that they can measure single solar panels which is more efficient. The possible loss will be reduced to a minimum. The Micro Inverter can measure information such as energy, voltage, current and temperature from a single solar panel. In addition, it is possible to monitor the (hardware) state of the product on the base of multiple error codes.
1 - Set to default
Set all config values to default values (factory settings). All values (0x00 – 0xFF) except for 0xAA or 0x55 can be used to default all the parameters.Size: 1 byte
Default: 170
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Set all config values to default values (factory settings). |
2 - Request frequency
Set the request frequency (in time) that the data is synchronized with the micro inverter hardware.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | The value * 100 ms with a range from 100 to 25.500 ms |
3 - Z-Wave send timeout
Set the Z-Wave send timeout that a certain value can’t be reported. This doesn’t mean that there is no Z-Wave transmission at all. It means that that particular value (e.g. temperature) is not reported (unsolicited) for the configured value time.Size: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable all unsolicited reporting. |
| 1 | 255 | Value > 0: timeout (s) = ((Value * 5) * cfg param 2) / 10 (Example: ((24 * 5) * 5) / 10 = 60 seconds) |
6 - Enable unsolicited CRC
Configure if any unsolicited message are sent using the CRC command encapsulation.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Disable unsolicited CRC. |
| 2 | 2 | Enable unsolicited CRC. |
| 3 | 255 | Disable unsolicited CRC. |
71 - Unsolicited Report conditions: VDC
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: 256020
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
72 - Unsolicited Report conditions: IDC
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: 256020
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
73 - Unsolicited Report conditions: PDC
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: -1734967276
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
74 - Unsolicited Report conditions: Energy AC
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: -1734967276
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
75 - Unsolicited Report conditions: Temperature
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: 256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
76 - Unsolicited Report conditions: kWh AC
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: 2560
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
78 - Unsolicited Report conditions: Error
The requirements that a value is reported unsolicited.If both watt and % requirement differ from previous sent value, a new unsolicited value is sent.Size: 4 bytes
Default: 256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -2147483647 | 2147483647 | BYTE 0 (LSB): Percentage (%) BYTE 1 – BYTE 3: Absolute value (watt) |
Caution: Risk of fatal injury from electric current. Make sure you are qualified to install this product. - Adding can be done 2 different ways: 1. Startup the Micro Inverter by applying its power. The Add mode will go on for circa 30 minutes. 2. If the Micro Inverter is already mounted (and therefore provided of power) press and hold the push button (inside the housing) for 2 seconds and release it to start the add mode.
Press and hold the push button (inside the housing) for 2 seconds and release it to start the remove mode.
Press and hold the pushbutton for 4 seconds to send a WAKE_UP_NOTIFICATION.
Start the remove mode. During the remove mode press the button for 4 times within 1,5 seconds. Please only use this feature when the primary controller is missing.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Meter type |
|---|
| Electric Meter Consumption |
