Enerwave Green Automation
IN-Wall Smart Meter TR Duplex Receptacle
ZW15RM
On/Off Power Switch
HW: 1 FW: 5.10
ZM5202
6.51.07
0x011A (282)
0x0111 (273)
0x0105 (261)
ZC10-16055066
2016-05-10 10:36:32.2694
N/A
Routing Slave
Always On Slave
IN-Wall Smart Meter TR Duplex Receptacle
The ZW15RM TR Duplex Receptacle is a perfect wireless manual and remote on/off control replacement of regular receptacles, controlling table and floor lamps, small appliances, etc. It provides two different type outlets. One outlet with Z-Wave mark has programmable functions such as scenes, association, schedule event, etc. It is fully interoperable with other Z-Wave certified device from other manufacturers and/or other applications. It can report wattage energy usage or kWh energy usage to a Z-Wave gateway.It has a Blue LED on the face cover indicates the status of the controlled outlet and/or act as a night light. The other outlet with Tamper-Resistant feature provides constant power, helps you and your families prevent electrical injuries.

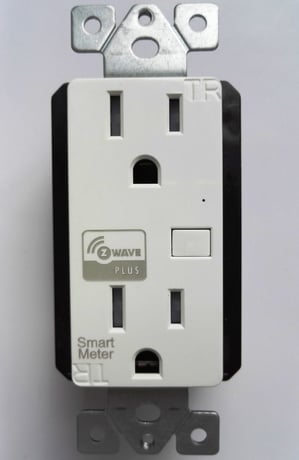

Product Picture
1 - LEDdirect
synchronization of outlet power and LED indicatorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power on, LED off |
| 1 | 1 | Power on, LED on |
When the controller is in add mode and the blue LED is blinking on the ZW15RM, press and hold the program button of ZW15RM for 3 second, and then the controller will verify the add.
When the controller is in remove mode, press and hold the program button of ZW15RM for 3 second, and then the controller will remove it from the current Z-Wave network, and the LED will blink on the receptacle,when power on.
Once program button is pressed and hold for 10 second, the device will send a device reset locally notification to controller. Then clear all of information for the network, and restore factory defaults, and reset the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
