Enerwave Green Automation
Smart Single Relay Switch Module
ZWN-RSM1
On/Off Power Switch
HW: 1 FW: 5.10
ZM5202
6.51.07
0x011A (282)
0x0111 (273)
0x0605 (1541)
ZC10-16055064
2016-05-09 11:12:51.4106
N/A
Routing Slave
Always On Slave
Smart Single Relay ON/OFF Switch Module
Z-Wave unifies all your home electronics into an integrated wireless network and helps them talk to each other. It can be added to the network,and making your home electronics fully compatible. The ZWN-RSM1 Switch Module is a component of lighting control system, it can’t be used separately but should turn an existing switch into a Z-Wave switch. This ZWN-RSM1 module is a Z-Wave enabled device and fully interoperable with other Z-Wave certified device from other manufacturers and/or other applications. In a Z-Wave network, each device is designed to act as a wireless repeater. Once the ZWN-RSM1 module is installed and setup with in your wall, it will retransmit the RF signal from one device to another until the intended device is reached. This ensures that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots.

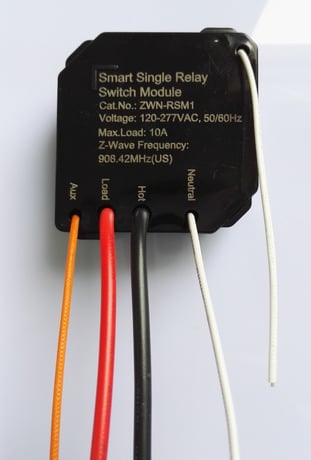

Product Picture
When the controller is in add mode, and once program button is pressed and released, or Flick 3 times of the connected switch in 1.5S, will also set the ZWN-RSM1 module enter into learn mode and then the controller will verify the add.
When the controller is in remove mode, and once program button is pressed and released, or Flick 3 times of the connected switch in 1.5S, will also set the ZWN-RSM1 module enter into learn mode and then the controller will verify the remove.
Once program button is pressed and hold for 10 second, the device will send a device reset locally notification to controller. Then clear all of information for the network, and restore factory defaults, and reset the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
