Graber
Roller Shade Radio Z-Wave
RSZ1
Window Covering - Pos/End Aware
HW: 255 FW: 187.65:0.11
ZM5202
6.61.00
0x026E (622)
0x5253 (21075)
0x5A31 (23089)
ZC10-16055083
2016-05-13 14:23:01.9328
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes

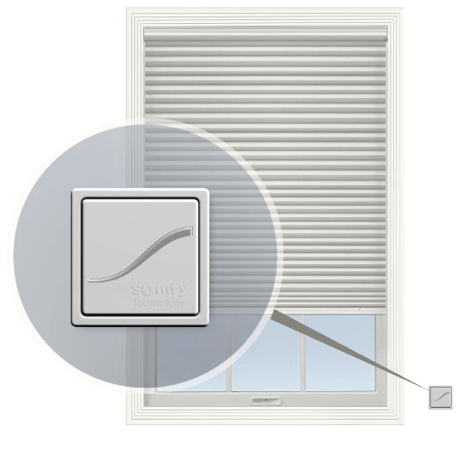

Automated custom window treatment for simplified, convenient lighting control featuring Z-Wave controlled motorized lift.
Enjoy the comfort, convenience and energy efficiency of beautiful custom motorized window treatments featuring Z-Wave protocol for easy integration. Lighting control has never been more simple. Window treatments can be automated using your favorite Z-Wave certified gateway or security system, or controlled by a remote control. Raise or lower the shades to control just the right amount of light, privacy and solar heat. Shades can be fully open, fully closed or anywhere in between, it’s up to you. In addition, some systems will also report back the state of the battery charge on battery operated versions.
1. Put Primary Controller into Inclusion Mode 2. Press and Hold Shade Programming Button for >2seconds
1. Put Primary Controller into Exclusion Mode 2. Press and Hold Shade Programming Button for >2seconds
The Wakeup command class should be configured by a hub when the remote is joined to a Z-Wave network. A WAKE_UP_INTERVAL_SET command should configure the NodeID at a minimum. The Wakeup interval can be configured to any value from 6 minutes to 25 hours. Recommendation is to leave the interval at the default of 12 hours to maximize battery life. The remote will wake up every WakeUpInterval and send a WakeUp Notification command as well as a battery report to the NodeID assigned with the Interval Set command. The WakeUp Notification will be sent within a few minutes of power being applied to the remote and then once every Wake Up Interval. A Wakeup Interval Capabilities command will inform the hub of the default, minimum, maximum and step size of the Wake Up interval.
Press and hold the button on the shade for approximately 15 seconds (the LED will stop flashing when complete). ""Please use this procedure only when the network primary controller is missing or otherwise inoperable.""
