Coolcam
Water Sensor
NAS-WS01Z
Notification Sensor
HW: 48 FW: 2.40
ZM5202
6.51.06
0x0258 (600)
0x0003 (3)
0x0085 (133)
ZC10-16055075
2016-05-17 13:56:10.2938
N/A
Routing Slave
Reporting Sleeping Slave
Detect the water leakage and send push notification to mobile phone
In the front casing, there is button that is used to carry out include, exclude or reset factory default settings on PCB Board. When power is first supplied, the LED will flash on and off alternately at one second intervals within 5 seconds if the detector has been added a Z-Wave network. Please get familiar with the terms below before starting the operations. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

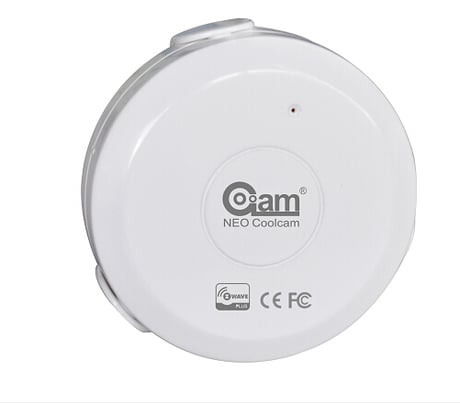

Product Picture
Add the Sensor to Z-Wave Network 1.Remove the sensor cover. 2.Make sure the sensor is powered. 3.Set Z-Wave controller or Z-Wave gateway into inclusion mode (Refer to the controller or gateway operating manual) 4.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off alternately five times.
Delete the Sensor from Z-Wave Network 1.Remove the device cover. 2.Make sure the sensor is powered. 3.Set Z-Wave controller or Z-Wave gateway into exclusion mode (Refer to the controller or gateway operating manual) 4.Press the button three times within 1.5 second, the device will enter exclusion mode.
Wakeup the Sensor Manual User can press button once to wake-up this sensor to send wakeup notification to controller, the Led will be blink one time.
Restore the Sensor to Factory Default Settings Note: to use the reset procedure only when the primary controller is missing or inoperable Reset procedure will delete all information on the Z-Wave network and Z-Wave controller or Z-Wave Gateway, and restore the sensor to factory default settings. 1.Remove the device cover. 2.Make sure the sensor is powered. 3.Press and hold the button for 10 seconds, led will blink once. 4.Release the button.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Water Flow |
