Sensative
Strips-MaZw
11 01 011
Notification Sensor
HW: 2 FW: 10.05:10.06
ZM5101
6.51.06
0x019A (410)
0x0003 (3)
0x0003 (3)
ZC10-16065109
2016-05-10 23:45:00.3926
N/A
Routing Slave
Reporting Sleeping Slave
Open/Close Magnet-sensor for doors & windows

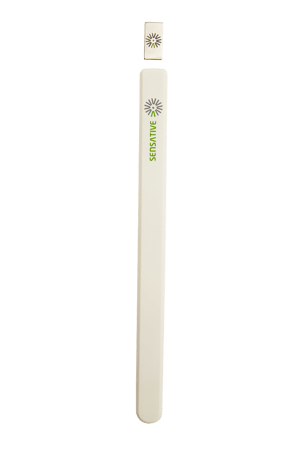

Strips by Sensative is an ultra-thin magnetic sensor designed to monitor windows and doors for your safety. It´s so thin that it can be mounted invisibly in the tiny gap between the frame and the door or window. It is as easy to mount as a sticker using Strips's adhesive tape. Strips is Z-Wave plus compliant and can be used with any existing Z-Wave smarthome systems.
1 - Notification type
User can use this configuration parameter to change the notification type compatible with their gatewaycontroller.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Binary Sensor report |
| 1 | 1 | Notification report |
| 2 | 2 | Basic report |
2 - LED indication
LED On during specific event detected (ex. door opened) else if the parameter value is 0, LED will be turned OFF for the specific event detected.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Specific event indication (ex. door opened) Off |
| 1 | 1 | On |
Strips is delivered in ""auto-add"" mode. Follow the process below to add Strips in a Z-Wave network. 1. Start the add mode on the Z-Wave controller. See the controller’s manual. 2. Remove both magnets from Strips. Strips blinks twice to confirm the command and successful addition. 3. A long LED blink indicates that the add process was successful 4. The Z-Wave controller application should now allow you to monitor your Strips sensor status. 5. Move the squared magnet as shown in the picture . Check that the Z-Wave system indicates the status correctly 6. If the Z-Wave system do not respond, it may be needed to change Strips’ notification type. Manual add: 1. Set the controller to add mode (See your controller’s manual). 2. Place the round magnet at the rounded edge of Strips. When the LED blinks, move the magnet away. Repeat 3 times in total within 10 seconds. 3. A long LED blink indicates that the add process was successful.
1. Set the controller in remove mode (See your controller’s manual). 2. Place the round magnet at the rounded edge of Strips. When the LED blinks, move the magnet away. Repeat 3 times in total within 10 seconds. 3. A long LED blink indicates that the remove process was successful.
Wake up Strips manually for Z-Wave communication: 1. Place the round magnet at the rounded edge of Strips. 2. When the LED blinks, move the magnet away. 3. Repeat 3 times in total within 10 seconds.
In order to reset Strips (only possible when the connection to the controller is lost): 1. Place the round magnet at the rounded edge of Strips. 2. When the LED blinks, move the magnet away. Repeat 3 times in total within 10 seconds. 3. On the 3rd repetition, leave the magnet at the rounded edge for 10s. 4. A long LED signal indicates success.
Failure message: 5 LED blinks
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
