GATEMAN
A200-CH
GDM-M2D6D-K0
Door Lock Keypad
HW: 16.16.16.16.16
ZM5202
6.51.06
0x0212 (530)
0xC600 (50688)
0x0004 (4)
ZC10-16065106
2016-06-17 10:58:51.162
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes

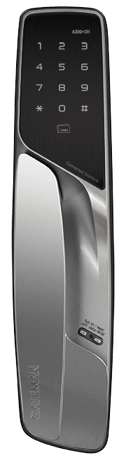

A mortise type digital door lock for smart home services.
A mortise type digital door lock for smart home services. 'A200-CH' is a security enabled Z-Wave Plus product for Korean domestic market. It can be included and operated in any Z-Wave network with other Z-Wave certified devices.
1 - Silent mode on/off
Set the silent mode on/offSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | unsigned value |
2 - Auto relock on/off
Set the auto relock on/offSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | unsigned value |
3 - relock time
Set the relock timeSize: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 180 | unsigned value |
To include: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'R' button [Registration] from the inside of battery cover. 4. Press 9,#,1,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play than press 'R' button [Registration]
To exclude: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'R' button [Registration] from the inside of battery cover. 4. Press 9,#,3,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play than press 'R' button [Registration]
The lock is always in 'Wake up status'. However, touch with palm to begin and end action.
To reset to factory defaults: ※ Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. (User code or master code remains the same. Only network settings reset to factory defaults.) 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'R' button [Registration] from the inside of battery cover. 4. Press 9,#,9,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play than press 'R' button [Registration]
