HEIMAN
Smart Door Sensor
HS1DS-Z
Notification Sensor
HW: 255 FW: 1.25
ZM5202
6.51.06
0x0260 (608)
0x0168 (360)
0x0168 (360)
ZC10-16055091
2016-05-26 11:09:53.7528
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Smart Door Sensor detects the open-close state of doors and windows, then send the information to gateway.
Smart Door Sensor can detect the open-close state of doors and windows, when people leave home. Once the smart door sensor detects the door is opened, it will send the information of door opened to users mobile phone immediately. User can know if their houses are intruded, no matter where they are. With 2 AA batteries, the battery life is more than 1 year. It is also very easy to install, user should only paste the smart door sensor on the door and door frame.

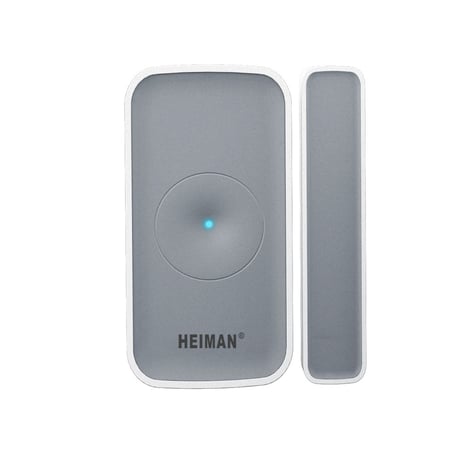

Product Picture
- Click [Add] icon in Z-Wave PC Controller Program - Press a Func_Button 3 time in HS1DS-Z (Door Sensor), Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
Click [Remove] icon in Z-Wave PC Controller Program - Press a Func_Button 3 times quickly in HS1DS-Z - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off in HS1DS-Z
- Wake up Notification is transmitted every 24 hours by default. - Wake up Notification is transmitted after Notification Report is Transmitted
Long press Func_Button while installing batteries in HS1DS-Z - Device Reset Locally notification is Transmitted - Please use the reset procedure only when the primary controller is missing or inoperable
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
