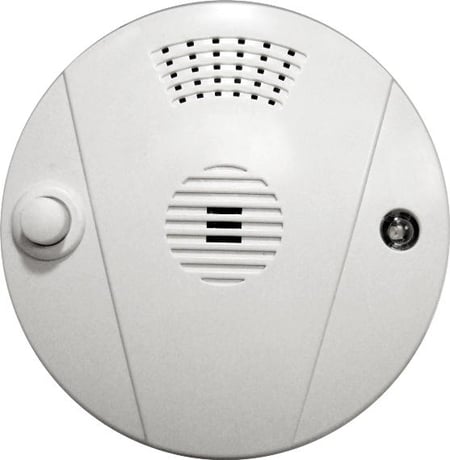

This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Insert the 3 “AA” batteries into the battery compartment connecting the correct polarity as shown on the battery compartment lid. HD-9 will emit a 2-tone beep. Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual). Within 1.5 seconds, press the Test Button 3 times. HD-9 will emit a 2- tone beep. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process. If the sensor has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel.

The Heat Detector must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). Within 1.5 seconds, press the Test Button 3 times and the Heat Detector will be removed from the Z-Wave network.

This function uses the Z-Wave Wake Up Command Class. The Wake Up Command Class allows the battery-powered Heat Detector to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up time is programmed automatically according to Control Panel’s setting when The Heat Detector is included. The recommended setting of the wake up time is 60 minutes above.

(Only use factory reset when network Control Panel/Gateway is missing or inoperable). Remove the batteries of the Heat Detector first. Press and hold the Test Button. While holding the Test Button, power on the Heat Detector by re-inserting the batteries, wait for 10 seconds to factory reset. <NOTE> Factory resetting the Heat Detector will restore it to factory default settings (excluded from the Z-Wave network). The Z-Wave gateway or control panel will still keep its Z-Wave settings. Please refer to the gateway or control panel manual on how to remove the Heat Detector’s Z-Wave settings.
