Z-Wave.Me
Z-Uno
v3
On/Off Power Switch
HW: 1 FW: 0.70
WML-C85
6.51.06
0x0115 (277)
0x0110 (272)
0x0001 (1)
ZC10-16065104
2016-06-08 13:54:25.4
N/A
Enhanced 232 Slave
Always On Slave
Z-Uno is a developer board that allows you to create your own Z-Wave device without deep knowledge of Z-Wave protocol using Arduino IDE. Certified 10 Channels sketch.
Z-Uno is the first and only easy to use developer board that allows you to create your own Z-Wave device without deep knowledge of Z-Wave protocol or programming. Z-Uno is a mix of Z-Wave home automation radio protocol power and Arduino simplicity. Being inspired by Arduino project Z-Uno inherits all concepts of easy-to-use hardware and software solutions, keeping maximum flexibility. Z-Uno is a fully DIY product. It is made for those who are limited by existing choice of Z-Wave products and wants to extend their smart homes with more sensors and actuators: connect LEDs, buttons, switches, motors or any low voltage sensor including most of Arduino compatible sensors. Z-Uno programming is done by writing sketch in simplified C language and loaded into Z-Uno using Arduino IDE. Many examples and comprehensive tutorials will help you to make your own project. This is one of the two officially certified sketches. Certified 10 Channels sketch http://z-uno.z-wave.me/examples/Certified10Channels/

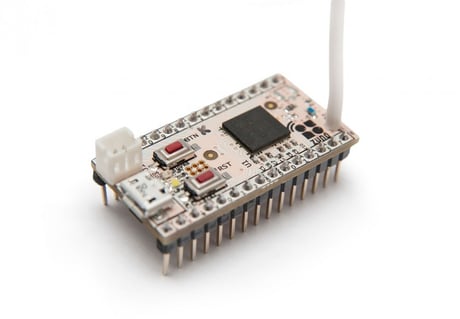

Product Picture
View configuration parameters (1)
2 - Blink with service LED during operation
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dont blink |
| 1 | 1 | Blink |
Operating instructions (4)
Press Service button three times
Press Service button three times
Press Service button three times
Hold Service button for five seconds, then press Service button three times. Use this procedure only if your controller is missing or inoperable. Note that the user sketch is not erased during exclusion or reset process.
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | Z-Uno V3 Manual.pdf |
Features (15)
| Type | Value(s) |
|---|
Supported sensors (9)
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
| Humidity |
| Carbon Dioxide (CO2) Level |
| Moisture |
| Carbon Monoxide (CO) Level |
| Smoke Density |
| Water Flow |
