BTSTAR
Heimdall
Heimdall
Gateway
HW: 1 FW: 4.05:01.01
SD3503
6.51.06
0x024A (586)
0x0102 (258)
0x0304 (772)
ZC10-16075139
2016-07-11 12:53:39.9256
N/A
Static Controller
Central Static Controller
Heimdall is a smart home Gateway designed by BTstar Technology Co.,Ltd.
Remote control and management of home device. Support real-time control Timing arrangement Scenarios Design Support real-time monitoring Smart products including gateway/controller, siren, smart plug, door sensor, lights, door lock ..etc

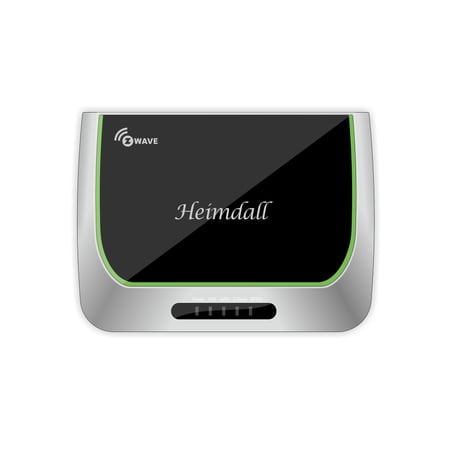

Product Picture
Ensure the Gateway not included any device or Reset the Gateway. You can review and control the device for learned Gateway. Into the Learn Mode, show “Processing…” , operate another Controller into inclusion device mode, after the completion of the study to be prompted to inclusion success. When you need initiate a replication of network information from the controller to another controller or want to receive network information, please enter ""include"" and ""learn mode""； Refer user manual page 11.
Click “Reset” , show “Proccessing…” to reset the Z-Wave network.Refer user manual page 12
A. Ensure Gateway is connected, enter device page and click “Add” to include devices, please flick the right button to include it according to the product manual. B. After device include show information (as attached photo), You can view the device at the “Device” interface C. If cannot include the device in 60 seconds, please remove the device and include it again. D. In the process of inclusion, please note the In/Ex changes of gateway, lights flash only when the gateway works properly.
A. Ensure gateway connected, click “Remove” to Exclude devices, please flick the right button to excluded it according to the product manual. B. After device Exclude show information , At the same time the device is removed at the “Device” interface.
