Contec - intelligent housing

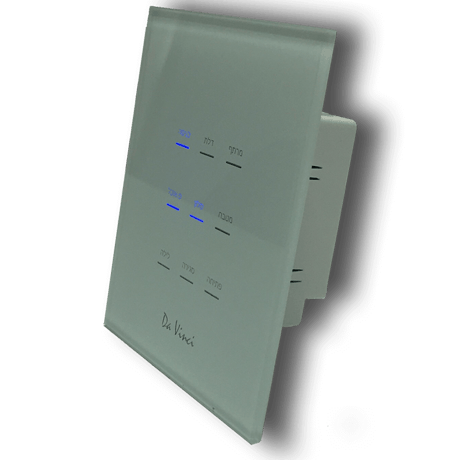

Da Vinci Wall Controller
Da Vinci v4
Wall Controller
HW: 1 FW: 6.33:02.00
ZM5202
6.51.08
0x025D (605)
0x0100 (256)
0x0100 (256)
ZC10-16065116
2016-06-23 16:57:45.1956
N/A
Enhanced 232 Slave
Always On Slave
High voltage in wall controller
The Da Vinci wall controller is a Multi Chanel Z-Wave device that contains up to 6 relays and up to 9 touch buttons that can be set to control either the relays (On/Off switches and shutters) or any other on/off (SWITCH_BINARY) , shutter (MULTILEVEL_SWITCH) Z-Wave device.
1 - EP 1 Type
End point 1 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
2 - EP 1 Partner Id
End point 1 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
3 - EP 1 Blind Duration
End point 1 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
4 - EP 1 Output
End point 1 Output – Relay numberSize: 2 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
5 - EP 2 Type
End point 2 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
6 - EP 2 Partner Id
End point 2 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
7 - EP 2 Blind Duration
End point 2 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
8 - EP 2 Output
End point 2 Output – Relay number.Size: 2 bytes
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
9 - EP 3 Type
End point 3 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
10 - EP 3 Partner Id
End point 3 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
11 - EP 3 Blind Duration
End point 3 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
12 - EP 3 Output
End point 3 Output – Relay number.Size: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
13 - EP 4 Type
End point 4 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
14 - EP 4 Partner Id
End point 4 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
15 - EP 4 Blind Duration
End point 4 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
16 - EP 4 Output
End point 4 Output – Relay number.Size: 2 bytes
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
17 - EP 5 Type
End point 5 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
18 - End point Id
End point 5 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
19 - EP 5 Blind Duration
End point 5 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
20 - EP 5 Output
End point 5 Output – Relay number.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
21 - EP 6 Type
End point 6 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
22 - EP 6 Partner Id
End point 6 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
23 - EP 6 Blind Duration
End point 6 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
24 - EP 6 Output
End point 6 Output – Relay number.Size: 2 bytes
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
25 - EP 7 Type
End point 7 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
26 - EP 7 Partner Id
End point 7 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
27 - EP 7 Blind Duration
End point 7 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
28 - EP 7 Output
End point 7 Output – Relay number.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
29 - EP 8 Type
End point 8 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
| 0 | 0 | On/Off Switch |
30 - EP 8 Partner Id
End point 8 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
31 - EP 8 Blind Duration
End point 8 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
32 - EP 8 Output
End point 8 Output – Relay number.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
33 - EP 9 Type
End point 9 TypeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On/Off Switch |
| 1 | 1 | Blind up |
| 2 | 2 | Blind down |
34 - EP 9 Partner Id
End point 9 partner id, Blind contain 2 end points (up/down) In case of type = Blind up/down: • Blind must contain Partner Id which is different than 0 and it must be unique In case of type = Switch: • Partner Id which is 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 9 | End point Id |
35 - EP 9 Blind Duration
End point 9 Default blind duration in seconds. In case of type = Switch: • Blind Duration is 0Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 127 | Seconds |
36 - EP 9 Output
End point 9 Output – Relay number.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 6 | Relay number |
Double Press the following buttons in the following order 8,1,3. Use the reset procedure only when the primary controller is missing or inoperable.
Press the #1 button 3 times.
Press the #1 button 3 times.
