Jasco Products Company

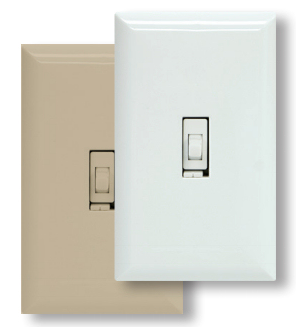

In-Wall Smart Toggle Switch (White)
14319/ZW4003
On/Off Power Switch
HW: 255 FW: 5.20
ZM5202
6.51.06
0x0063 (99)
0x4952 (18770)
0x3131 (12593)
ZC10-16065123
2016-06-27 16:06:57.53
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Jasco Z-Wave Smart Toggle Switch.
Transform any home into a smart home with the Jasco Z-Wave Smart Toggle Switch. The In-Wall Smart Toggle Switch can easily replaces any standard in-wall switch and remotely controls a light in your home. Your home will be equipped with ultimate flexibility with the Jasco Z-Wave Smart Toggle Switch, capable of being used by itself or with up to four add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Jasco Z-Wave In-Wall Smart Toggle Switch is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!
4 - Invert Switch
If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 1 | Invert |
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release on the toggle to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to exclude your device, press up and release on the toggle to exclude it from the network.
1. Quickly press ON (up) 3 times then immediately press the OFF (Down) button 3 times. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
