HomeSeer
HomeSeer Valve Controller
HS-WV100+
Valve - Open/Close
HW: 255 FW: 2.03
ZM5202
6.51.06
0x000C (12)
0x0x03 (0)
0x0x02 (0)
ZC10-16075132
2016-07-01 09:43:37.8232
N/A
Enhanced 232 Slave
Always On Slave
HS-WV100+ includes a Z-Wave activated controller and electronic water valve. The product is designed to work with any Z-Wave certified home control system to automatically (or remotely) turn off water when leaks are detected. HS-WV100+ may also be used for a variety of other water and irrigation needs.
The HS-WV100+ Z-Wave Valve Controller is a professionall grade Z-Wave Device that allows the water to your home or business to be automatically (or remotely) turned off when water is detected by water sensors connected to any Z-Wave capable controller. The HS-WV100+ Z-Wave Valve Controller is Z-Wave Plus compliant allowing you to use all of the functionality and programmability built into the new, Z-Wave Plus Controllers. It comes with a Stainless Steel Electronic Ball Valve. Design and Operation of The HS-WV100+ Valve Controller -Simply install the stainless steel Electronic Ball Valve on the ½” or ¾” water line where water enters your home or business, attach it to the HS-WV100+ by plugging in the RJ-11 telephone jack, and tell your Z-Wave controller about the HS-WV100+ and your home or business is protected. Standard telephone wires and connectors can be used to extend the Ball Valve’s wire so it is easy to locate the Electronic Ball Valve where you need it to be, and still have easy access to the HS-WV100+ Z-Wave Valve Controller. When any of your water sensors get wet, your Z-Wave Controller will tell the HS-WV100+ to turn the water off and Voilà! No Flood! A fully capable Z-Wave device, you can also program scenes that allow your HS-WV100+ to turn the water off when you leave home and arm your security system and back on when you get home. No more worries about your house flooding while you are away. Also, for your convenience and piece of mind, there are two buttons on the HS-WV100+ that allow you to instantly turn your water off and on. No more looking for that water key and digging in the yard looking for your water meter!

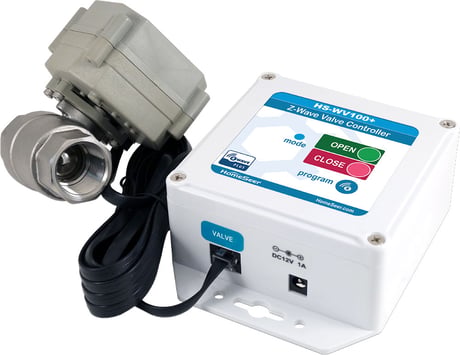

Product Picture
How to Add the HS-WV100+ Z-Wave Valve Controller to your Z-Wave Controller - Plug the wall cube power adapter (included) into the receptacle on the bottom of the HS-WV100+ Z-Wave Valve Controller marked “3.6 VDC”. Plug the wall cube into a 110 VAC outlet. This provides power to the HS-WV100+ Z-Wave Valve Controller. - Configure the Z-Wave Controller to Add a device. - When the Z-Wave Controller is ready to add a device, it will display a message like “waiting to add device. Press Add button on the device” - The Add/Remove button is located on the side of the HS-WV100+ Z-Wave Valve Controller. Press the Add/Remove button. - The Z-Wave Controller will acknowledge that the HS-WV100+ Z-Wave Valve Controller had been added to the Z-Wave network. - Your HS-WV100+ Z-Wave Valve Controllerler is ready to use.
How to Remove the HS-WV100+ Z-Wave Valve Controllerler to your Z-Wave Controller - Plug the wall cube power adapter (included) into the receptacle on the bottom of the HS-WV100+ Z-Wave Valve Controller marked “3.6 VDC”. Plug the wall cube into a 110 VAC outlet. This provides power to the HS-WV100+ Z-Wave Valve Controller. - Configure the Z-Wave Controller to Remove a device. - When the Z-Wave Controller is ready to Remove a device, it will display a message like “waiting to remove device. Press remove button on the device” - The Add/Remove button is located on the side of the HS-WV100+ Z-Wave Valve Controller. Press the Add/Remove button. - The Z-Wave Controller will acknowledge that the HS-WV100+ Z-Wave Valve Controller had been removed from the Z-Wave network. - Your HS-WV100+ Z-Wave Valve Controller is removed form this controller.
How to reset the HS-WV100+ Z-Wave Valve Controller. - To reset the HS-WV100+ Z-Wave Valve Controller Z-Wave radio and routing table, press and hold the Add/Remove button located on the side of the HS-WV100+ Z-Wave Valve Control for 15 seconds. Use this procedure only when the network primary controller is missing or otherwise inoperable.
How to turn water on and off manually - Plug the wall cube power adapter (included) into the receptacle on the bottom of the HS-WV100+ Z-Wave Valve Controller marked “3.6 VDC”. Plug the wall cube into a 110 VAC outlet. This provides power to the HS-WV100+ Z-Wave Valve Controller. - Plug the HS-WV100+ electronic ball valve into the RJ-11 (telephone type connector) connector located on the bottom of the HS-WV100+ Z-Wave Valve Controllerler. - Standard telephone wires, extenders, and connectors with RJ-11 connectors can be used to extend the distance between the HS-WV100+ Z-Wave Valve Controller and the HS-WV100+ electronic ball valve. The maximum recommended distance between the HS-WV100+ Z-Wave Valve Controller and the HS-WV100+ electronic ball valve is 30 feet.
