Plug-in Smart Meter Dimmer Module
ZWN-323M
Light Dimmer Switch
HW: 1 FW: 5.10
ZM5202
6.51.07
0x011A (282)
0x0111 (273)
0x0202 (514)
ZC10-16065120
2016-06-27 09:26:00.848
N/A
Routing Slave
Always On Slave
Plug-in Smart Meter Dimmer Module, with power measure.
This ZWN-323 Dimming Module is a Z-Wave enabled device and is fully interoperable with other Z-Wave certified device. In a Z-Wave network, ZWN-323M enable you to remotely ON/OFF&Dim control a Z-Wave controlled outlet for the lamp and always-on AC outlet for other device. ZWN-323M also acts as a repeater, retransmitting the RF signal from one device to another until the intended device is reached. With a horizontal design, the ZWN-323M plug-in dimmer module will not block other nearby AC outlets. The ZWN-323M Smart Meter Module enables you to measure the energy usage of your appliance. When added to a Z-Wave network, the Smart Meter Module reports real time data to your gateway or controller. It can also display actual consumption (in W) and the accumulated power used (in kWh) in the user interface of the gateway/remote. Please use the gateway installation manual for specific instructions on measuring the module.

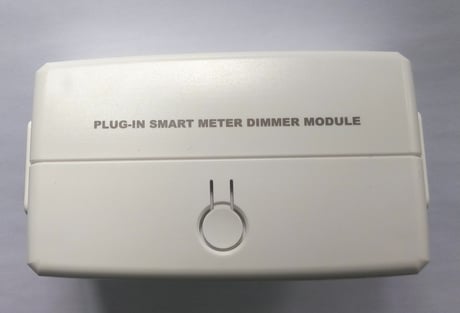

Product Picture
1 - LEDdirect
synchronization of outlet power and LED indicatorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power on, LED off |
| 1 | 1 | Power on, LED on |
While the gateway/remote is in the adding mode and the blue LED blinks on the ZWN-323M, flicks the program button 3 times in the 1.5 second. The gateway or remote will verify the adding, assign a node ID number for the module .
While the gateway or remote in the removing mode, flicks the program button 3 times in the 1.5 second. The gateway or remote will verify the deleting, remove the module from the current Z-Wave network, and the LED will blink when the module is on power.
Flicks the program button 3 times in the 1.5 second then press once and hold for 2 second.the device will send a device reset locally notification to controller. Then clear all of information for the network, and restore factory defaults, and reset the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
