TKB Home
Smart energy plug in switch
TZ69CN
On/Off Power Switch
HW: 1 FW: 2.00
ZM5202
6.51.06
0x0118 (280)
0x0004 (4)
0x0002 (2)
ZC10-16065121
2016-06-27 11:58:06.3176
N/A
Enhanced 232 Slave
Always On Slave
This smart energy plug in switch is wireless switch with power consumption detect, based on Z-Wave technology
This smart energy plug is able to detect current wattage (5-3000W) and overload wattage (3010-3300W) of connected lights or appliances. When detecting overload state, the switch will be disabled and its on/off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch and it will reset its overload condition to normal status.

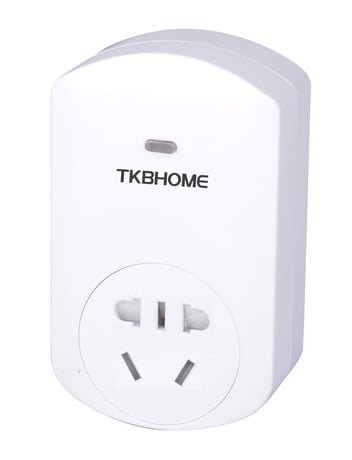

Product Picture
1. Enter your Z-Wave controller into inclusion mode 2. Press the socket on/off button three times within 1.5 seconds to be included.
1. Enter your Z-Wave controller into exclusion mode 2. Press the socket on/off button three times within 1.5 seconds to be excluded.
1. To reset, press the socket on/off button three times within 1.5 seconds 2. then the fourth time, press and hold for seconds until the socket LED is off 3. the socket reset successfully Use the ""Reset"" procedure only in the event that the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
