Hank
Smart Plug
HKZW-SO03
On/Off Power Switch
HW: 1 FW: 1.00
ZM5101
6.51.08
0x0208 (520)
0x0101 (257)
0x000A (10)
ZC10-16065127
2016-06-30 10:44:47.5292
N/A
Enhanced 232 Slave
Always On Slave
Smart plug is a Z-Wave Switch plugin module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool.
Smart plug is a Z-Wave Switch plugin module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report wattage consumption or kWh energy usage. Smart Plug is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade .

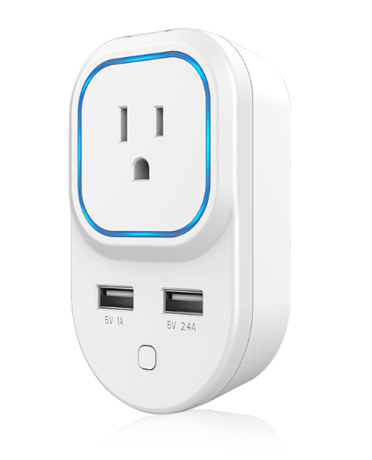

Product Picture
20 - Overcurrent protection
Smart Plug keep detecting the load power, once the AC current exceeds 16.5A for more than 5s, smart plug's relay will turn off.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 1 | 1 | The function is enabled. |
21 - Setting Smart Plug’s load status after re-power on
Define how the Plug reacts after the power supply is back on.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Smart Plug memorizes its state after a power failure |
| 1 | 1 | Connected device will be on after the power supply is reconnected |
| 2 | 2 | Connected device will be off after the power supply is reconnected |
24 - Notification when Load status change
Smart Plug can send notifications to association device (Group Lifeline) when state of smart plug’s load change.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 1 | 1 | Send Basic report |
| 2 | 2 | Send Basic report only when Load condition is not changed by Z-WAVE Command |
27 - Indicator modes
After smart plug being included into a Z-Wave network, the RGB LED indicator will indicator the situation of load.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The Smart Plug will work in Power indication mode |
| 1 | 1 | The Smart Plug will work in Power indication mode for 5 seconds, when the state of Smart Plug’s load changed. RGB LED indicator will turn off if there is no more switch action in 5 seconds. |
151 - Threshold of change in wattage
Power threshold to be interpreted, when the change value of load power exceeds the setting threshold, the smart plug will send meter report to associated device (Group Lifeline).Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled. |
| 1 | 65535 | The minimum change value in wattage for sending a meter report to the associated device |
152 - Threshold of change in wattage percentage
Power percentage threshold to be interpreted, when change value of the load power exceeds the setting threshold, the smart plug will send meter report to associated device (Group Lifeline).Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled. |
| 1 | 255 | The minimum change value in wattage percent for sending a meter report to the associated device |
171 - Intervals of sending METER REPORT (for wattage)
The interval of sending meter report(in term of wattage) to associated device (Group Lifeline).Size: 4 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 5 | 2678400 | The time for sending a meter report |
172 - Intervals of sending METER REPORT (for kWh)
The interval of sending meter report(in term of kWh) to associated device (Group Lifeline).Size: 4 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled. |
| 5 | 2678400 | The time for sending a meter report |
173 - Intervals of sending METER REPORT (for voltage).
The interval of sending meter report(in term of voltage) to associated device (Group Lifeline).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 5 | 2678400 | The time for sending a meter report |
174 - Intervals of sending METER REPORT (for current).
The interval of sending meter report(in term of current) to associated device (Group Lifeline).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled. |
| 5 | 2678400 | The time for sending a meter report |
1) Connect the power supply. 2) Set the Z-Wave network main controller into inclusion mode (see Z-Wave network controller operating manual). 3) Triple click the Z-button or power up the device , RGB LED indicator should blink fast in blue. 4) Smart Plug should be recognized and included into the Z-Wave network.
1) Insert the Plug into a socket. 2) Set the Z-Wave network controller into the exclusion mode (see Z-Wave controller operating manual). 3) Triple click the Z button. 4) RGB LED indicator will blink orange till the removing process is completed, than the indicator will keep orange for 3 seconds.
1) Insert the Plug into a socket, 2) Press and hold the Z button for more than 20 seconds, 3) If holding time more than 20seconds, the RGB LED indicator will keep yellow for 2 seconds, which means resetting is complete. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
