Simon
Switch IO
10002034-13x && 10000322-039
On/Off Power Switch
HW: 1 FW: 4.18.72.15.65.15
ZM5202
6.51.07
0x0x26 (0)
0x0001 (1)
0x0000 (0)
ZC10-16115315
2016-11-21 18:10:43.176536
N/A
Enhanced Slave
Always On Slave

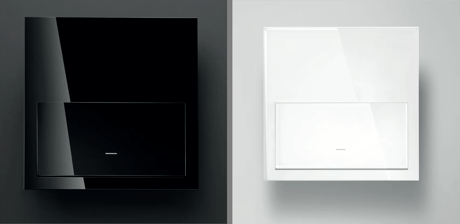

Simon Electronic Switch
Simon Electronic Switch IO integrated by Electronic Switch that provides power Switch and Rocker that provides Z-Wave communication attributes.
1 - Association LED
Used during Association process by Simon Shortcut Switch IO to turn ON the main LED of all devices already associated to this shortcut.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns the main LED OFF |
| 255 | 255 | Turns the main LED ON |
10 - Delay ON
delay from activation request until load activation. Please note that possible values are referenced in HEX format from 0x00 to 0xFF (unsigned 1 byte values). Please Refer to "Z-Wave Command Class Specification, A-M" --> "Multilevel Switch Set Command" --> "Duration Table" specification to lean more about these values meaning.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 128 | 254 | Delay in minutes From 1 to 127 |
| 0 | 127 | Delay in seconds |
11 - Activation Time
Time that load performs activated after complete an activation process. Please note that possible values are referenced in HEX format from 0x00 to 0xFF (unsigned 1 byte values). Please Refer to "Z-Wave Command Class Specification, A-M" --> "Multilevel Switch Set Command" --> "Duration Table" specification to lean more about these values meaning.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Delay in seconds |
| 128 | 254 | Delay in minutes From 1 to 127 |
12 - Behavior of LED in Repose
Configuration of Main LED as identification at 20%.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED OFF |
| 255 | 255 | LED ON at 20% of maximum level |
13 - Lock Input
Locks the pushbutton and wired input actions.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlock the direct control of load |
| 255 | 255 | Lock the direct control of load |
15 - Reset Default
Parameters, Groups, and Z-Wave status are restored to default. (Only writable)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 39015 | 39015 | Device persorms a factoy default Reset |
16 - Delay OFF
delay from deactivation request until load deactivation. Please note that possible values are referenced in HEX format from 0x00 to 0xFF (unsigned 1 byte values) Please Refer to "Z-Wave Command Class Specification, A-M" --> "Multilevel Switch Set Command" --> "Duration Table" specification to lean more about these values meaning.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Delay in seconds |
| 128 | 254 | Delay in minutes From 1 to 127 |
When the pushbutton is released after a press of (2sec<T<20sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<20sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (20sec<T) the device will perform a factory default values operation, excluding it from network and resetíng the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Switch IO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience.
| Type | Value(s) |
|---|
