MK Electric
2G Switch
LSM12I
Not Z-Wave Plus
A/D
ZM3102
5.02 (PATCH 3)
0x0040 (64)
0x0905 (2309)
0x0102 (258)
ZC08-10010001
0001-01-01 00:00:00
N/A
Routing Slave
N/A
This product is mains powered and used to control two externally connected loads (up to 10AX rating). The device features 2 switches on the front for toggling the state of each of the loads.2 GANG 10AX SWITCH MODULE RF Range up to 75m (open field) Can control up to 5 devices Can control a group Pre programmed with HOLIDAY MODE function Mains powered STANDARD CARTON QUANTITY: 1 Suitable for use with the following load types and maximum load ratings only. Load Type Maximum Load GLS 25-2400W Tungsten filament 25-2400W Tungsten halogen 25-2000W Fluorescent Tubes with ferro-magnetic ballast and power factor correction 18-1800W Maximum load capacitance 1 4 0 µ F Fluorescent tubes with electronicballast* 18-540W Compact Fluorescent (low energy) lamps* 25-750W ELV Tungsten halogen ferro-magnetic or electronic transformers* 25-1500VA

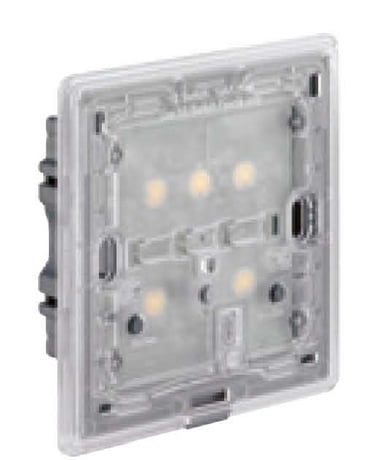

Product Picture as Published
