Leviton Manufacturing, Inc.
Dimmer
DZ6HD
Light Dimmer Switch
HW: 255 FW: 1.22
ZM5202
6.61.00
0x001D (29)
0x3201 (12801)
0x0001 (1)
ZC10-16095221
2016-09-07 11:32:44.3522
N/A
Enhanced 232 Slave
Always On Slave
Dimmer designed for most residential lighting applications to control LED, CFL, and incandescent bulbs utilizing Z-Wave Plus technology.
The wireless Leviton DZ6HD is a Z-Wave enabled dimmer designed for use for most residential lighting applications to control LED, CFL, and incandescent bulbs. The DZ6HD Dimmer is fully compatible with Z-Wave Plus certified controllers. Provides full range dimming with adjustable fade rates. Manufacturer Parameters allow custom configuration via Z-Wave commands. Offers manual control to turn lights on/off and set brightness level, with an LED feedback to display brightness level. Facilitates single pole or three-way multi-location applications. Rated for 300W LED and CFL dimmable bulbs and 600W incandescent bulbs, requires neutral connection. These Z-Wave Plus devices support beaming, network wide inclusion, and over the air updates. White and Light Almond color faces included, Decora wallplate sold separately.

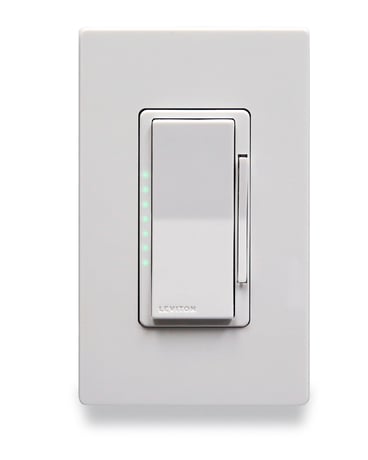

Product Picture
1 - Fade On Time
Fade On Time • Parameter No: 1, Length: 1 Byte • Valid Values = 0 to 253 (0xFD) (default 2) - 0 = Instant On - 1 - 127 = Seconds: 1 - 127 seconds - 128 - 253 (0x80 - 0xFD) = Minutes: 1 - 126 minutesSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 253 | Valid Values (0x00 - 0xFD) |
| 0 | 0 | Instant On |
| 1 | 127 | 1-127 Seconds |
| 128 | 253 | 1-126 Minutes (0x80 - 0xFD) |
2 - Fade Off Time
Fade Off Time • Parameter No: 2, Length: 1 Byte • Valid Values = 0 to 253(0xFD) (default 2) - 0 = Instant Off - 1 - 127 = Seconds: 1 - 127 seconds - 128 - 253 (0x80 - 0xFD) = Minutes: 1 - 126 minutesSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instant Off |
| 1 | 127 | 1-127 Seconds |
| 128 | 253 | 1-126 Minutes (0x80 - 0xFD) |
| 0 | 253 | Valid Values (0x00 - 0xFD) |
3 - Minimum Light Level
Minimum Light Level • Parameter No: 3, Length: 1 Byte • Valid Values = 0 to 100 (default 10)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Valid Values |
4 - Maximum Light Level
Maximum Light Level • Parameter No: 4, Length: 1 Byte • Valid Values = 0 to 100 (default 100)Size: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Valid Values |
5 - Preset Light Level
Preset Light Level • Parameter No: 5, Length: 1 Byte • Valid Values = 0 to 100 (default 0) - 0 = Memory Dim - Last dim state - 1 - 100 = LevelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Memory Dim (Last Dim State) |
| 1 | 100 | Level |
| 0 | 100 | Valid Values |
6 - LED Dim Level Indicator Timeout
LED Dim Level Indicator Timeout • Parameter No: 6, Length: 1 Byte • Valid Values = 0 to 255(0xFF) (default 3) - 0 = Level Indicators Off - 1 - 254 (0x01 - 0xFE) = Level Indicator Timeout (seconds) - 255 (0xFF) = Levels Always OnSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Level Indicators Off |
| 1 | 254 | Level Indicator Timeout (seconds)(0xFE) |
| 255 | 255 | Indicators Always On (0xFF) |
| 0 | 255 | Valid Values (0x00 - 0xFF) |
7 - Locator LED Status
Locator LED Status • Parameter No: 7, Length: 1 Byte • Valid Values = 0 to 255 (0xFF) (default 255 (0xFF)) - 0 = LED Off - 254 (0xFE) = Status Mode - 255 (0xFF) = Locator ModeSize: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED Off |
| 254 | 254 | LED Status Mode (0xFE) |
| 255 | 255 | LED Locator Mode (0xFF) |
8 - Load Type
Load Type - 0 = Incandescent - 1 = LED - 2 = CFL - 3 = Mark 10Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 3 | Load Type |
Leviton Decora Smart™ Z-Wave® devices support two methods of inclusion. When using a Z-Wave Plus® certified controller choose Network Wide Inclusion. Network Wide Inclusion: Network Wide Inclusion allows your device to be included into the network using devices already in the network to assist with communication. Work your way from the closest devices to the controller outward. • Enter Programming Mode by holding the top of the paddle for 7 seconds, the Locator LED will blink amber. • Tap the top of the paddle one time. The Locator LED will quickly flash green. • The Decora Smart™ Z-Wave® device is ready to learn into the Z-Wave® network. • Follow directions in the Z-Wave controller to complete the adding process. • Upon successful addition to network the LED will turn off and then blink green 3 times. • If the adding process is not successful the LED will flash red 3 times. Traditional Inclusion: For older controllers Traditional Inclusion is supported. Depending on the age of the controller the controller will need to be 3 to 35 feet from the device when including. • Enter Programming Mode by holding the top of the paddle for 7 seconds, the Locator LED will blink amber. • The Decora SmartTM Z-Wave® device is ready to add to the Z-Wave® network. • Follow directions in the Z-Wave® controller to enter learn mode. • Tap the top of the paddle one time. The Locator LED will quickly flash green. The Z-Wave® controller will begin to pair with the Decora Smart™ device. • Upon successful addition to the network the LED will turn off and then blink green 3 times. • If the adding process is not successful the LED will flash red 3 times.
When removing a device from a Z-Wave® network best practice is to use the exclusion command found in the Z-Wave® controller. • Enter Programming Mode by holding the top of the paddle for 7 seconds, the Locator LED will blink amber. • Follow directions in the Z-Wave® controller to enter exclusion mode • Tap the top of the paddle one time. The Locator LED will quickly flash green. The Z-Wave® controller will exclude the Decora Smart™ device • The Z-Wave® controller will confirm successful exclusion from the network.
When removing a device from a network it is best practice to use the Exclusion process. In situations where a device needs to be returned to factory default follow the following steps. A reset should only be used when a controller is inoperable or missing. • Hold the top of the paddle for a total of 14 seconds. • After the first 7 seconds the LED turns amber. • The Locator LED will quickly flash red/amber after 14 seconds. • Release the top of the paddle and the device will reset.
