Zooz
Zooz Z-Wave Contact Sensor
ZSE08
Notification Sensor
HW: 65 FW: 3.61
ZM5202
6.51.06
0x027A (634)
0x0003 (3)
0x1082 (4226)
ZC10-16085181
2016-08-19 17:00:23.3668
N/A
Routing Slave
Reporting Sleeping Slave
Yes
This small and discreet door window sensor is easy to install and quick to join your Z-Wave network. Use it as a simple open / close sensor to notify you of unexpected events or associate the sensor with other Z-Wave devices such as smart lighting to turn lights on when you open the door.
PRODUCT FEATURES: - Reliable open/close detection for doors, windows, cabinets, and drawers - Wireless notifications and event triggers (when included to a Z-Wave gateway controller) - Scene inclusion for custom automation scenarios when included to a Z-Wave gateway controller - Low battery alerts - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Discreet compact design SPECIFICATIONS Model Number: ZSE08 Z-Wave Signal Frequency: 908.42 MHz Power: 1 CR2 battery (included) Power Consumption: 0.13W Operating Temperature: 32 – 104 F Range: Up to 100 feet line of sight Installation and Use: Indoor only Dimensions: 2 ¾” x ¾” Weight: ½ oz

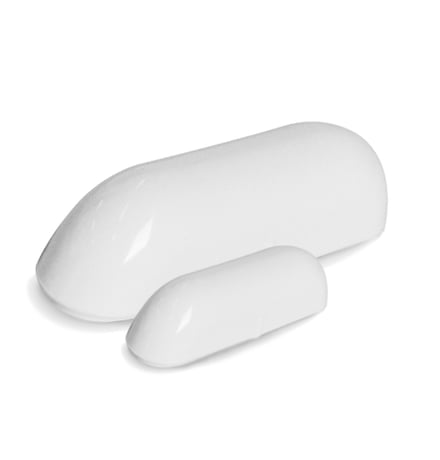

Product Picture
1 - Trigger Delay
Set the delay time for turning associated devices OFF based on status change of your Contact Sensor. The number entered as the value corresponds to the number of seconds. So if 0 is entered by default, the Contact Sensor will report status change and trigger an associated device to turn off instantly, without any delay. If you change this setting to 10, the sensor will only trigger the associated device after 10 seconds the status change is reported - if your door or window is closed, the light will not go off for another 10 seconds.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65536 | Seconds to delay associated device to turn off after sensor changes status |
2 - Trigger Action
You can choose if your Contact Sensor turns an associated device on or off when sending the basic set command. Use value 0 to turn the associated device OFF and value 255 to turn it ON. Adjust brightness level for a Z-Wave dimmer (Multilevel switch) by putting in any value between 1 and 99.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Associated device will turn OFF when triggered by the sensor |
| 1 | 99 | Brightness level % the associated device will turn ON to when triggered by the sensor |
| 255 | 255 | Associated device will turn ON when triggered by the sensor |
1. Bring the Contact Sensor within direct range of your controller 2. Carefully remove the cover from your Contact Sensor 3. Remove the plastic pull-tab from the battery slot. The LED indicator will blink slowly 4. Put your Z-Wave controller into inclusion mode 5. Press and release the Z-Wave button on the Contact Sensor 3 TIMES quickly. The LED indicator will flash quickly 6. A new open/close (door/window) sensor will appear on your controller's device list Troubleshooting Tips If you are unable to include the Z-Wave Contact Sensor to your controller, please try one of the following: - Bring the Contact Sensor closer to your Z-Wave controller or use a hand-held secondary controller to perform inclusion - Once in inclusion mode, press and release the Z-Wave button quickly 6-7 TIMES to ensure the command has gone through - Put your controller into EXCLUSION mode. Press and release the Z-Wave button quickly 3 TIMES, and then try adding it to your network again
1. Make sure the Contact Sensor is powered on and located within direct range of your Z-Wave gateway controller 2. Put your Z-Wave controller into exclusion mode 3. Press and release the Z-Wave button 3 TIMES quickly. The LED indicator will flash quickly 4. The Contact Sensor should disappear from your controller's device list If the first attempt is unsuccessful, please repeat the process following all steps carefully.
If you change settings and parameters for the sensor, you may need to wake it up manually for the changes to be recorded. Press and release the Z-Wave button ONCE to wake the device up. The LED indicator will flash ONCE. The sensor’s wake-up interval is set to 12 hours by default to save battery life. Though not recommended, you can change the wake-up interval using your controller’s advanced settings if available. Minimum value: 300s (5 minutes), maximum value: 16,777,200s (around 194 days). Accepted values need to match minute intervals, so 300, 360, 420, etc.
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. To complete the process, make sure the Contact Sensor is powered on, then PRESS AND HOLD the Z-Wave button for AT LEAST 10 SECONDS until the LED indicator flashes ONCE. Release the button. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
