HEIMAN
Smart Smoke Sensor
HS1SA-Z
Notification Sensor
HW: 255 FW: 1.10
ZM5202
6.51.08
0x0260 (608)
0x8002 (32770)
0x1000 (4096)
ZC10-16095242
2016-09-28 09:27:37.8572
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The smart smoke Sensor adapts Z-Wave wireless communication technology to send an alarm notification to your gateway and sound an alarm to alert of smoke producing in the home.
The smart smoke sensor detects smoke, and sends an alarm signals to alert of danger. When the smart smoke sensor detects smoke, it will send an alarm notification to your gateway through wireless Z-Wave communication protocol. Then the gateway will send the notification to the server, the server interprets the signal and transfers the signal to users' APP. The smart smoke sensor has high stability and sensitivity, which will alert house of fire effectively.

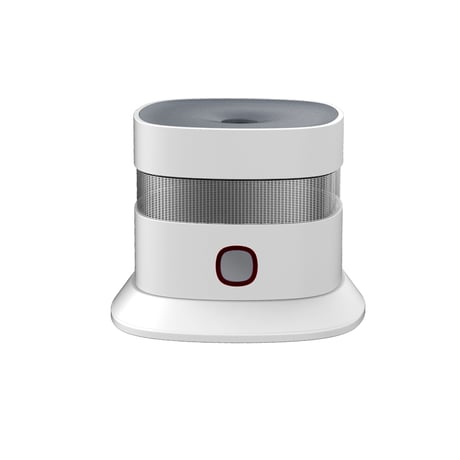

Product Picture
- Click [Add] icon in Z-Wave PC Controller Program. - Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
- Click [Remove] icon in Z-Wave PC Controller Program - Press the Net_Button 3 times within 1.5s - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off.
- Wake up Notification is transmitted every 24 hours by default. - Wake up Notification is transmitted after Notification Report is Transmitted
-Long press Net_Button while installing batteries in HS1SA-Z. - Device Reset Locally notification is Transmitted. -Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
