Zooz

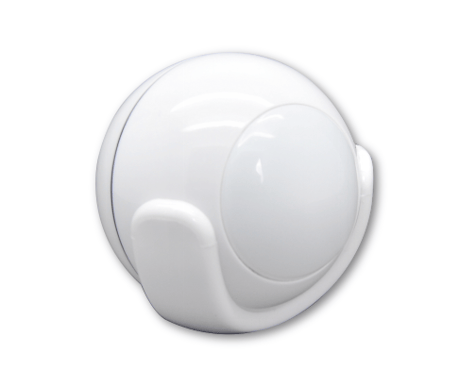

Zooz Z-Wave Motion and Light Mini Sensor
ZSE09
Notification Sensor
HW: 66 FW: 3.80
ZM5202
6.51.06
0x027A (634)
0x0003 (3)
0x0083 (131)
ZC10-16085198
2016-08-30 23:35:47.754204
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Use this compact Z-Wave Plus sensor to monitor motion and light level. Schedule scenes and events based on sensor readings and receive notifications when activity is detected.
PRODUCT FEATURES: - Accurate motion and light level detection - Wireless notifications and low battery alerts (when included to a Z-Wave gateway controller) - Custom automation scenarios based on both light and motion triggers (advanced configuration required) - Adjustable sensitivity levels for motion detection to fit your needs - Ultra small and simple design - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Flexible and quick installation SPECIFICATIONS: Model Number: ZSE09 Z-Wave Signal Frequency: 908.42 MHz Power: 1 CR123A battery (included) Power Consumption: 0.15W Operating Temperature: 32 – 104 F Motion detection: Up to 20 feet Range: Up to 100 feet line of sight Installation and Use: Indoor only Dimensions: 1.9” x 1.8” Weight: ½ oz
1 - Motion Sensitivity
Choose the right motion sensitivity for your environment and lifestyle. Adjust detection just right by choosing a value from 8 to 255, where 8 stands for high sensitivity level (detection of the smallest movement) and 255 stands for very low sensitivity level.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 8 | 255 | Motion detection sensitivity |
2 - Trigger ON Duration
Set the duration you want the associated device to stay ON for after being triggered by the sensor before it automatically turns OFF. The number entered as the value corresponds to the number of seconds. So if 30 is entered by default, the associated device will stay ON for 30 seconds after the Mini Sensor reports status change (BASIC_SET command) and triggers the device, it will then turn off automatically. It’s an easy and quick way to set up a motion-based lighting event. If you change this setting to 300, the associated Z-Wave light fixture will stay ON for 5 minutes after motion has been detected by the Mini Sensor. The value set for this parameter needs to be greater than value set in parameter 6.Size: 2 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 600 | Number of seconds the associated device to stay ON for after being triggered by the sensor before it automatically turns OFF |
3 - Trigger Action
You can choose if your Mini Sensor turns an associated device on or off when sending the BASIC SET command. Use value 0 to turn the associated device OFF and value 255 to turn it ON. Adjust brightness level for a Z-Wave dimmer (Multilevel switch) by putting in any value between 1 and 99.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | Associated device will turn ON when triggered by the sensor |
| 1 | 99 | Brightness level (percentage) the associated device will turn ON to when triggered by the sensor |
4 - Motion Detection
Use this parameter to enable and disable motion detection on your Mini Sensor.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | Motion detection enabled |
5 - Light Trigger Level
Set your light sensor as a secondary trigger for associated devices. If light level in a room falls beyond the set point and motion is detected, the Mini Sensor will send BASIC_SET command to associated devices to turn ON. The number entered as the value corresponds to the number of LUX. So if 100 is entered by default, the associated device will turn ON if light level last reported by the sensor is under 100 LUX and if motion has been detected by your Mini Sensor. Values: 0 – 1000 (LUX). 100 (LUX) – default setting.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1000 | Light level change (in LUX) to set off light trigger |
6 - Motion Trigger Interval
Adjust the time when motion is reported again after initial trigger. The number entered as the value corresponds to the number of seconds. So if 8 is entered by default, the Mini Sensor will report motion for 8 seconds after it first detects movement. The value set for this parameter can NOT be greater than value set in parameter 2. NOTE: Small interval will increase activity and decrease battery life.Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 8 | Number of seconds for motion trigger interval |
7 - Light Polling Interval
Decide how often you want the Mini Sensor to report light level to the controller and associated devices. The number entered as the value corresponds to the number of seconds. So if 180 is entered by default, the Mini Sensor will report light level values every 3 minutes. The value set for this parameter can NOT be greater than the wake-up interval. NOTE: Small interval will increase activity and decrease battery life.Size: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 60 | 360000 | Light polling interval in seconds |
8 - Light Trigger
Use this parameter to enable and disable the light sensor as secondary trigger. If this feature is enabled, the Mini Sensor will activate associated devices based on motion AND light level set in parameter 5.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Light trigger disabled |
| 255 | 255 | Light trigger enabled |
9 - Light Report
Choose light level change to be reported by the Mini Sensor to the controller. The number entered as the value corresponds to the number of LUX. So if 100 is entered by default, the sensor will report any change of 100 LUX or more.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Light level change (in LUX) to be reported by the sensor to the controller |
10 - LED Notifications
Use this parameter to turn LED notifications on or off for motion detection.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 1 | LED enabled |
1. Bring the Mini Sensor within direct range of your controller 2. Carefully turn and lift the cover of your Mini Sensor to access the battery 3. Remove the plastic pull-tab from the battery slot. The LED indicator will blink slowly 4. Put your Z-Wave controller into inclusion mode 5. Press and release the Z-Wave button on the Contact Sensor 3 TIMES quickly. The LED indicator will flash quickly 6. A new motion and light sensor will appear on your controller's device list Troubleshooting Tips If you are unable to include the Z-Wave Mini Sensor to your controller, please try one of the following: - Bring the Mini Sensor closer to your Z-Wave controller - Once in inclusion mode, press and release the Z-Wave button quickly 6-7 TIMES to ensure the command has gone through - Put your controller into EXCLUSION mode. Press and release the Z-Wave button quickly 3 TIMES, and then try adding it to your network again
1. Make sure the Mini Sensor is powered on and located within direct range of your Z-Wave gateway controller 2. Put your Z-Wave controller into exclusion mode 3. Press and release the Z-Wave button 3 TIMES quickly. The LED indicator will flash quickly 4. The Mini Sensor should disappear from your controller's device list
If you change settings and parameters for the sensor, you may need to wake it up manually for the changes to be recorded. Press and release the Z-Wave button ONCE to wake the device up. The LED indicator will flash ONCE. The sensor’s wake-up interval is set to 12 hours by default to save battery life. Though not recommended, you can change the wake-up interval using your controller’s advanced settings if available. Minimum value: 300s (5 minutes), maximum value: 16,777,200s (around 194 days). Accepted values need to match minute intervals, so 300, 360, 420, etc.
When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. To complete the process, make sure the Mini Sensor is powered on, then open the cover and PRESS AND HOLD the Z-Wave button for AT LEAST 10 SECONDS until the LED indicator flashes ONCE. Release the button. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
| Illuminance |
