HEIMAN
Smart Carbon Monoxide Sensor
HS1CA-Z
Notification Sensor
HW: 255 FW: 1.10
ZM5202
6.51.08
0x0260 (608)
0x8005 (32773)
0x1000 (4096)
ZC10-16095241
2016-09-28 09:28:10.0088
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The smart carbon monoxide sensor adapts Z-Wave wireless communication technology to send an alarm notification to the gateway and sound an alarm to alert people of carbon monoxide producing in house.
The smart carbon monoxide sensor detects CO, and sends alarm signals to alert people of the danger. When the smart carbon monoxide sensor detects CO, it will send an alarm notification to the gateway through wireless Z-Wave communication protocol, then the gateway sends the notification to server, the server interprets the signal and transfers the signal to users' APP. The smart carbon monoxide sensor has high stability and sensitivity, which will protect house from CO poisoning effectively.

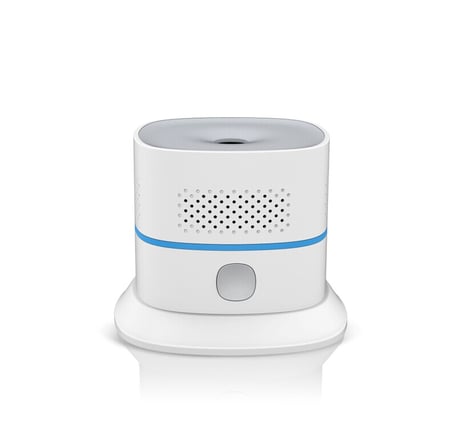

Product Picture
- Click [Add] icon in Z-Wave PC Controller Program. - Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green LED will turn off.
- Click [Remove] icon in Z-Wave PC Controller Program - Press the Net_Button 3 times within 1.5s - If Exclusion Process is successful, Green LED is Blinking 6 times, then turn off.
- Wake up Notification is transmitted every 24 hours by default. - Wake up Notification is transmitted after Notification Report is Transmitted
-Long press Net_Button while installing batteries in HS1CA-Z. - Device Reset Locally notification is Transmitted. -Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
