LG Uplus
Open Sensor
OSLI-01
Notification Sensor
HW: 1 FW: 39.24
SD3502
6.51.08
0x0273 (627)
0x0003 (3)
0x0001 (1)
ZC10-16095234
2016-09-07 11:42:09.5558
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Window & door open sensor
Detecting the status of Door or Windows equipped with Z-Wave Open Sensor and notifying the status to a customer via smart phone application.

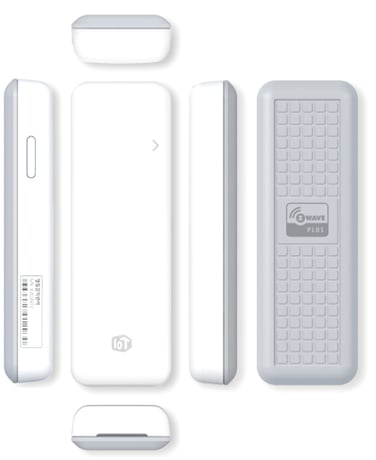

Product Picture
1 - Battery report Period
Wake Up period x Configuration value = Battery report PeriodSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Default 24 (0x18), 0x01~0xFF in 15 minute increments |
1. Press & hold inclusion/Exclusion button during 5 seconds when Open Sensor is exclusion status. 2. Press for 5 seconds, LED is turn on. 3. Open sensor will try inclusion for 30 seconds when button is released.
1. Receiver will stay exclusion waiting mode. 2. Press & hold inclusion/Exclusion button during 5 seconds when Open Sensor is exclusion status. 3. Press for 5 seconds, LED is turn on. 4. Open sensor will try exclusion when button is released. 5. If exclusion is successful, LED will blink 3 times with 250ms interval.
1. Device sends Wake up Notification by every 15 minutes. 2. Devices also sends Wake up Notification when inclusion/exclusion button is shortly pressed regardless of 15minutes interval.
1. Press & hold inclusion/Exclusion button during 10 seconds. 2. LED will blink while holding the button. 3. Factory reset will be done in 10 seconds after releasing button and blink 5 times with 100ms interval. ※ Please use factory reset only when the network primary controller is missing or otherwise inoperable.
Firmware auto update via over the air
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
