Zooz
Zooz Z-Wave On / Off Light Switch
ZEN21
On/Off Power Switch
HW: 1 FW: 20.15
ZM5202
6.51.06
0x015D (349)
0x0111 (273)
0x231C (8988)
ZC10-16085193
2016-08-26 16:16:55.8772
N/A
Routing Slave
Always On Slave
Use this Z-Wave Plus On / Off switch to control and monitor lighting from anywhere. Modern decora style is complemented by a screwless snap-on wall plate.
PRODUCT FEATURES: - Manual or remote on/off control from your mobile device or computer (when included to a Z-Wave gateway controller) - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Works with LED, CFL, and incandescent bulbs - Based on universal binary switch command class - supported by most Z-Wave controllers - May be associated and grouped with other Z-Wave devices for advanced home automation - Simple elegant design with screwless snap-on wall plate included - Built-in Z-Wave signal repeater for a stronger and more reliable network - Single pole installation only, neutral wire required SPECIFICATIONS: Model Number: ZEN21 Z-Wave Signal Frequency: 908.42 MHz Power: 120 VAC, 60 Hz Maximum Loads: 960W Incandescent, 1800W (15A) Resistive, ½ HP Motor Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module Operating Temperature: 32-104° F (0-40° C) Installation and Use: Indoor only

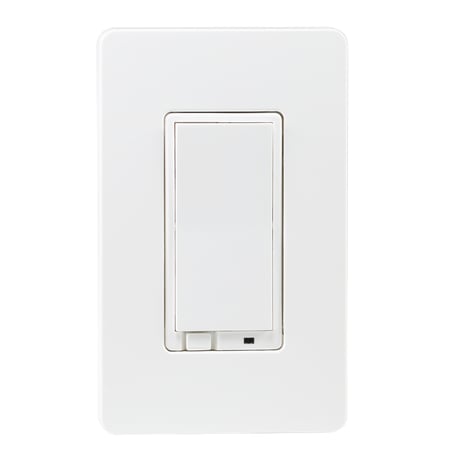

Product Picture
1. Bring your Z-Wave gateway hub or controller as close to the switch as possible 2. Put your Z-Wave controller in inclusion mode 3. Tap the switch on and off quickly 3 times to finalize the inclusion process 4. A new on/off device should appear on your controller's device list Troubleshooting Tips: If you are unable to include the Z-Wave switch to your controller, please try one of the following: - Bring the controller closer to your Z-Wave switch or use a hand-held secondary controller for inclusion - Tap your Z-Wave switch quicker 4 or 5 times once you put the controller in the inclusion mode to ensure the command has gone through - Put your controller in the EXCLUSION mode and tap the switch quickly 3 times, then try adding it to your network again
1. Bring your Z-Wave gateway hub or controller as close to the switch as possible 2. Put your Z-Wave controller in exclusion mode 3. Tap the switch on and off quickly 3 times to complete the exclusion process 4. The device should disappear from your controller's device list Please repeat the process following all steps carefully if the first attempt is unsuccessful
The switch will be reset to factory defaults only by exclusion using a Z-Wave controller. You may use any certified Z-Wave controller to exclude and reset the switch. This device may not be reset manually when the network’s primary controller is missing or otherwise inoperable. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
