TKB Home
Smart Plug in Switch
TZ68BR
On/Off Power Switch
HW: 1 FW: 2.00
ZM5202
6.51.06
0x0118 (280)
0x0003 (3)
0x0002 (2)
ZC10-16095206
2016-08-26 11:40:01.5964
N/A
Enhanced 232 Slave
Always On Slave
When you use this ON/OFF plug-in switch, just put it in the outlet, add it to the Z-Wave controller, download APP, you can use it control appliance with max. load 2500W on/off via smartphone.
1. This plug-in ON/OFF switch in a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. 2. Each socket is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure the signal to ensure that the signal is received by its intended destination. 3. You can use the button in the socket to include/exclude, manually on/off or act as a indicator. You can use it to turn on/off appliance remotely via smart home or computer.

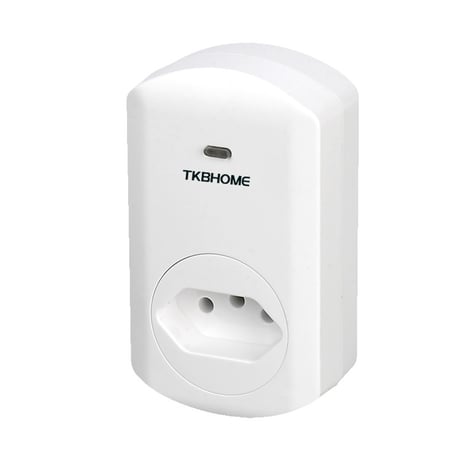

Product Picture
1. Have Z-Wave controller with inclusion mode 2. Press the socket on/off button three times within 1.5 seconds to be included to the controller
1. Have Z-Wave controller with exclusion mode 2. Press the socket on/off button three times within 1.5 seconds to be excluded from the controller
1. Press the socket on/off button three times within 1.5 seconds 2. then within 1 second to press and hold on for 5 seconds until the socket button LED is off, reset to factory default successfully 3. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
